2025 Winnebago Forza 34T

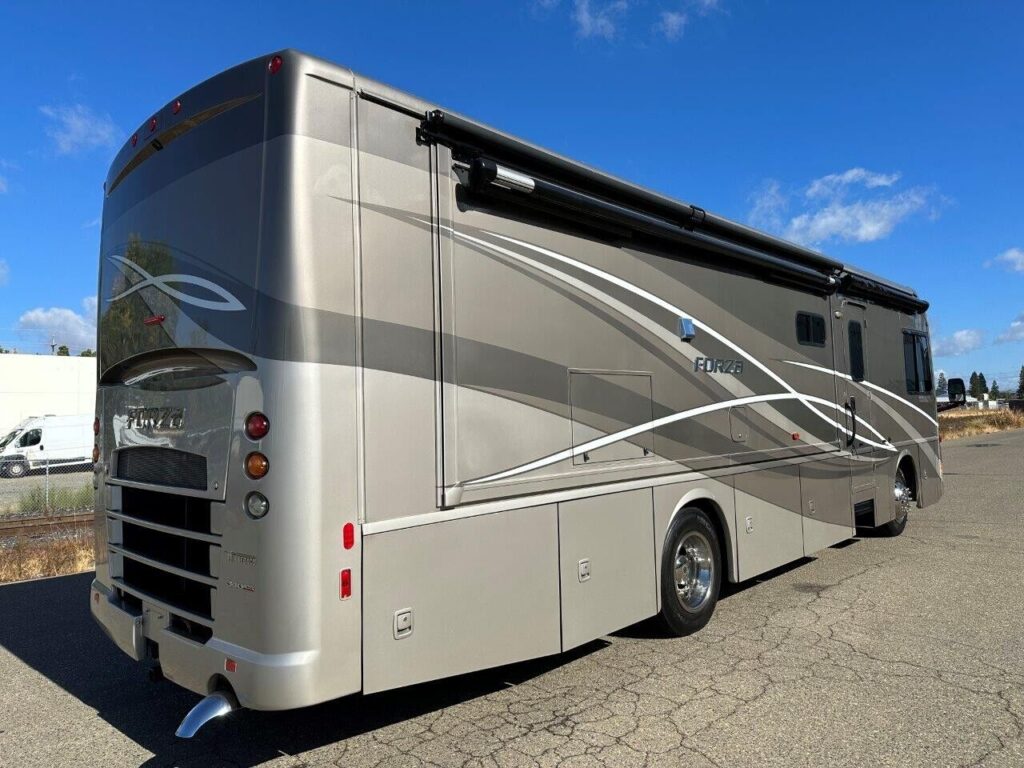

Line photo: Winnebago publishes one photo for the Forza line, so it may show another floorplan. Windows and slides can differ from the 34T described here.

Winnebago · Class A · 2025

Winnebago Forza 34T

Diesel power on a Freightliner XCS with NeWay air suspension, a Cummins 6.7L and an exhaust brake sets the Forza apart from Winnebago's gas Class As. The 34T layout has theater seating, two slides, washer/dryer prep and a heat-pump A/C. Its usable towing is capped by GCWR rather than the hitch rating.

Approx. price
~$361,072
maker starting price
Length
35.5 ft
Sleeps
5
Winnebago’s page for this model →

Floorplan

Winnebago Forza 34T floorplan drawing

Winnebago’s drawing of the 34T layout. Tap it for the full-size file.

Specifications

Size

Exterior length
35.5 ft
Exterior height
12 ft
Sleeps
5
Slide-outs
2

Tanks and power

Factory solar
None
House battery
4x Group 31 deep-cycle (standard)
Generator
6,000-watt generator w/automatic start

Chassis

Chassis
Freightliner XCS (26,000 lb), NeWay air suspension
Engine
Cummins ISB 6.7L diesel, 340 hp, Allison 6-speed
Fuel
Diesel

Standard equipment named by the maker

  • Freightliner XCS chassis w/NeWay air suspension
  • 340-hp Cummins 6.7L diesel, Allison 2500 MH
  • Engine exhaust brake
  • 2,000-watt inverter/charger
  • Theater seating; washer/dryer prep
  • Two A/Cs (one w/heat pump), 35,000 BTU ducted furnace
  • Automatic hydraulic leveling jacks
  • 153 cu ft exterior storage

Weights

2025 maker figures

GVWR
26,000 lb
Dry weight (UVW)
not published
Occupant + cargo (OCCC)
not published
Towing capacity
7,000 lb
What these weights mean →

Tow vehicle: none needed. The Winnebago Forza 34T is a Class A motorhome and drives itself. It is rated to tow up to 7,000 lb behind it.

Size, to scale

051015202530354045 ft
  • Winnebago Forza 34T · 35.5 ft long · 12′ tall
Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.

Compared with

2027 Winnebago Adventurer 35F

Class A · Winnebago

Winnebago Adventurer 35F

Length
35.8 ft
Sleeps
5
GVWR
22,000 lb
  • Generator
  • Tows 4,000 lb
  • 74 gal fresh

~$257,575

2025 Winnebago Vista 31BLine photo

Class A · Winnebago

Winnebago Vista 31B

Length
31.2 ft
Sleeps
7
GVWR
22,000 lb
  • 1 slide
  • Generator
  • Tows 5,000 lb

~$214,022

9 owner accounts →

2027 Winnebago ARKA 20Z

Class C · Winnebago

Winnebago ARKA 20Z

Length
26.6 ft
Sleeps
4
GVWR
19,500 lb
  • 4-season
  • Tows 15,000 lb
  • Diesel

~$331,901

2027 Winnebago Revel 44ELine photo

Class B · Winnebago

Winnebago Revel 44E

Length
19.6 ft
Sleeps
2
GVWR
9,050 lb
  • 210 W solar
  • Tows 5,000 lb
  • Diesel

~$261,808

Where these figures come from

Taken from these pages. Options and later model-year changes can move any of them.
