Winnebago · Class C · 2027

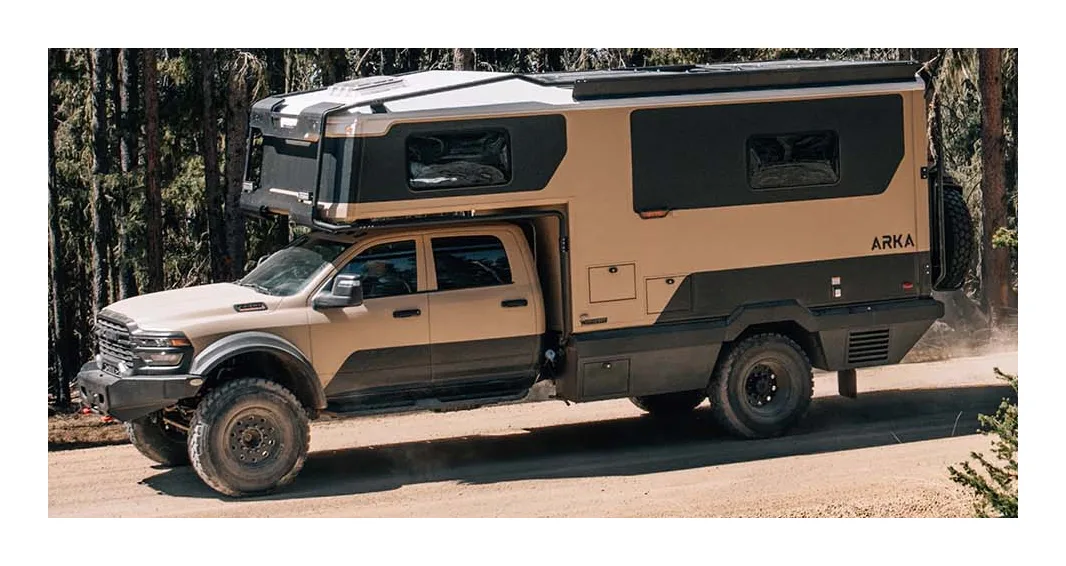

Winnebago ARKA 20Z

Expedition-style box on a Ram 5500 4x4 diesel, and the one Winnebago motorhome here with a four-season rating, built around hydronic in-floor heat and heat-recovery ventilation. A full-height heated rear garage with L-track sits behind a convertible front bunk that makes a king, queen or twins, and the shower is hidden beside a cassette toilet. The 48V power system and a 15,000-lb hitch come on every truck, while the Overland trim adds 41-inch tires and roof solar. Around $332,000.

Approx. price: ~$331,901; maker price
Length: 26.6 ft
Sleeps: 4

Specifications

Size

Exterior length: 26.6 ft
Exterior height: 11.8 ft
Sleeps: 4
Slide-outs: 0

Tanks and power

Fresh water: 60 gal
Gray water: 40 gal
House battery: 48V Lithionics lithium (165 Ah/7.5 kWh in Overland trim; 'up to 16.8 kWh')

Chassis

Chassis: Ram 5500 4x4 crew cab
Engine: 6.7L I-6 diesel, 8-speed
Fuel: Diesel

Standard equipment named by the maker

Ram 5500 4x4 diesel chassis, 15,000-lb hitch
Hydronic heating with in-floor heat; heat-recovery ventilation
48V EcoFlow power hub, 3,600 W inverter
Full-height heated rear gear garage with L-track
Convertible front bunk (king/queen/twins)
Cassette toilet, hidden shower
Overland trim: 41-inch tires, winch-ready bumper, 4x200 W solar

Weights

2027 maker figures

GVWR: 19,500 lb
Dry weight (UVW): not published
Occupant + cargo (OCCC): not published
Towing capacity: 15,000 lb

What these weights mean →

Size, to scale

051015202530354045 ft

Winnebago ARKA 20Z · 26.6 ft long · 11′10″ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.

Cold-weather build: Maker: 'All-Season Comfort ... engineered to operate from -10°F to 120°F' with hydronic heat, heated floors and tanks
