2027 Winnebago Revel 44E

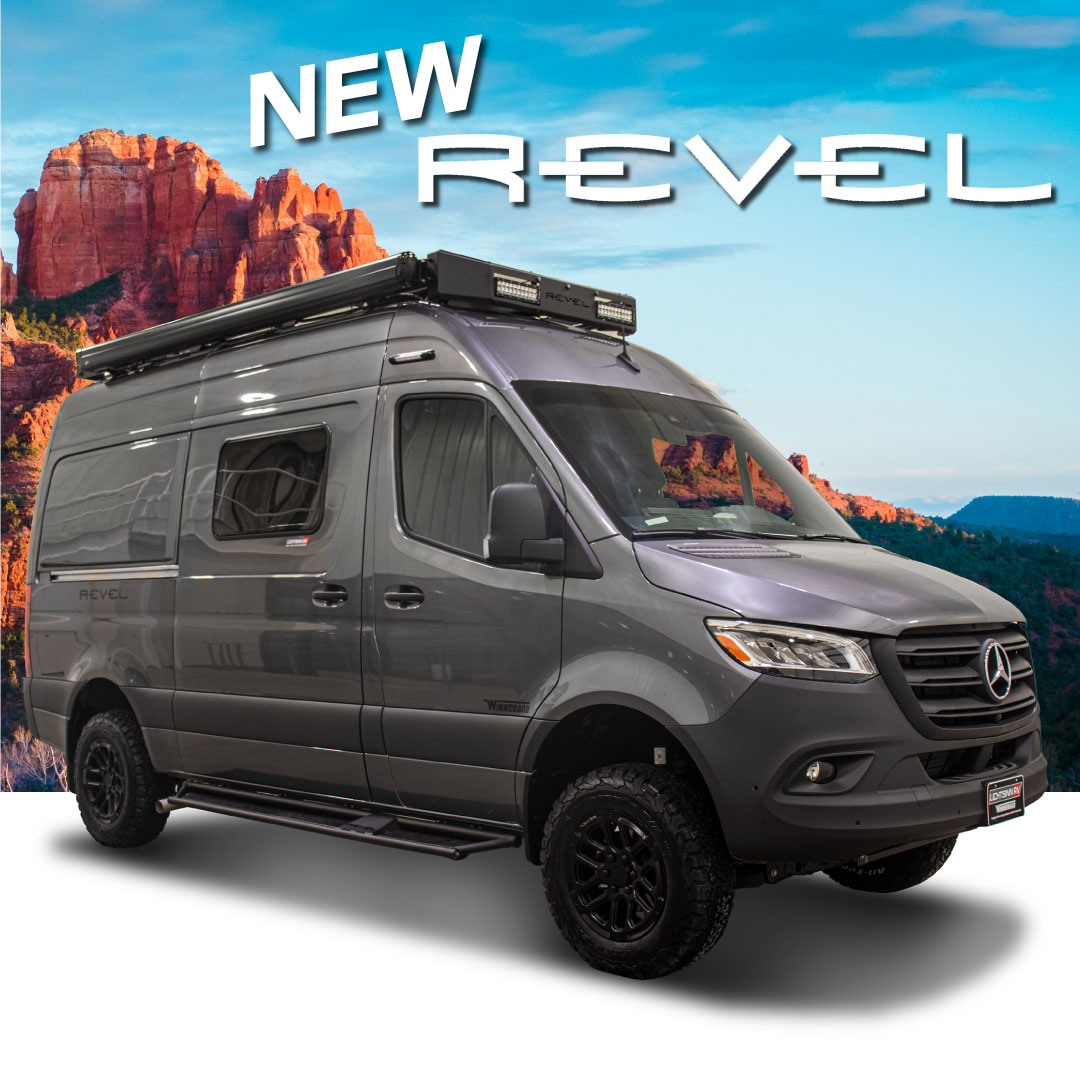

Line photo: Winnebago publishes one photo for the Revel line, so it may show another floorplan. Windows and slides can differ from the 44E described here.

Winnebago · Class B · 2027

Winnebago Revel 44E

Winnebago's AWD Sprinter van puts a power-lift bed over a gear garage with L-track, and heats the fresh and gray tanks alongside hydronic multi-zone heat. An 8.4 kWh lithium bank with a 3,600 W inverter is standard, with a second bank optional; A/C is not standard. Around $262,000 the same as the 44EC variant.

Approx. price
~$261,808
maker starting price
Length
19.6 ft
Sleeps
2
Winnebago’s page for this model →

Floorplan

Winnebago Revel 44E floorplan drawing

Winnebago’s drawing of the 44E layout. Tap it for the full-size file.

Specifications

Size

Exterior length
19.6 ft
Exterior height
10 ft
Sleeps
2
Slide-outs
0

Tanks and power

Factory solar
210 W
House battery
8.4 kWh Lithionics lithium (Winnebago Power MAX, standard); second 8.4 kWh optional

Chassis

Chassis
Mercedes-Benz Sprinter AWD
Engine
2.0L turbo-diesel 4-cylinder, 211 hp, 9-speed automatic
Fuel
Diesel

Standard equipment named by the maker

  • AWD Mercedes-Benz Sprinter chassis
  • Winnebago Power MAX 8.4 kWh lithium + EcoFlow Power Hub Pro (3,600 W inverter)
  • 210 watts solar
  • Hydronic multi-zone heating
  • Power lift bed w/gear garage and L-track
  • Heated freshwater and gray tanks
  • Cassette toilet in wet bath
  • 3M Thinsulate insulation

Weights

2027 maker figures

GVWR
9,050 lb
Dry weight (UVW)
not published
Occupant + cargo (OCCC)
not published
Towing capacity
5,000 lb
What these weights mean →

Tow vehicle: none needed. The Winnebago Revel 44E is a Class B camper van and drives itself. It is rated to tow up to 5,000 lb behind it.

Size, to scale

051015202530354045 ft
  • Winnebago Revel 44E · 19.6 ft long · 10′ tall
Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
