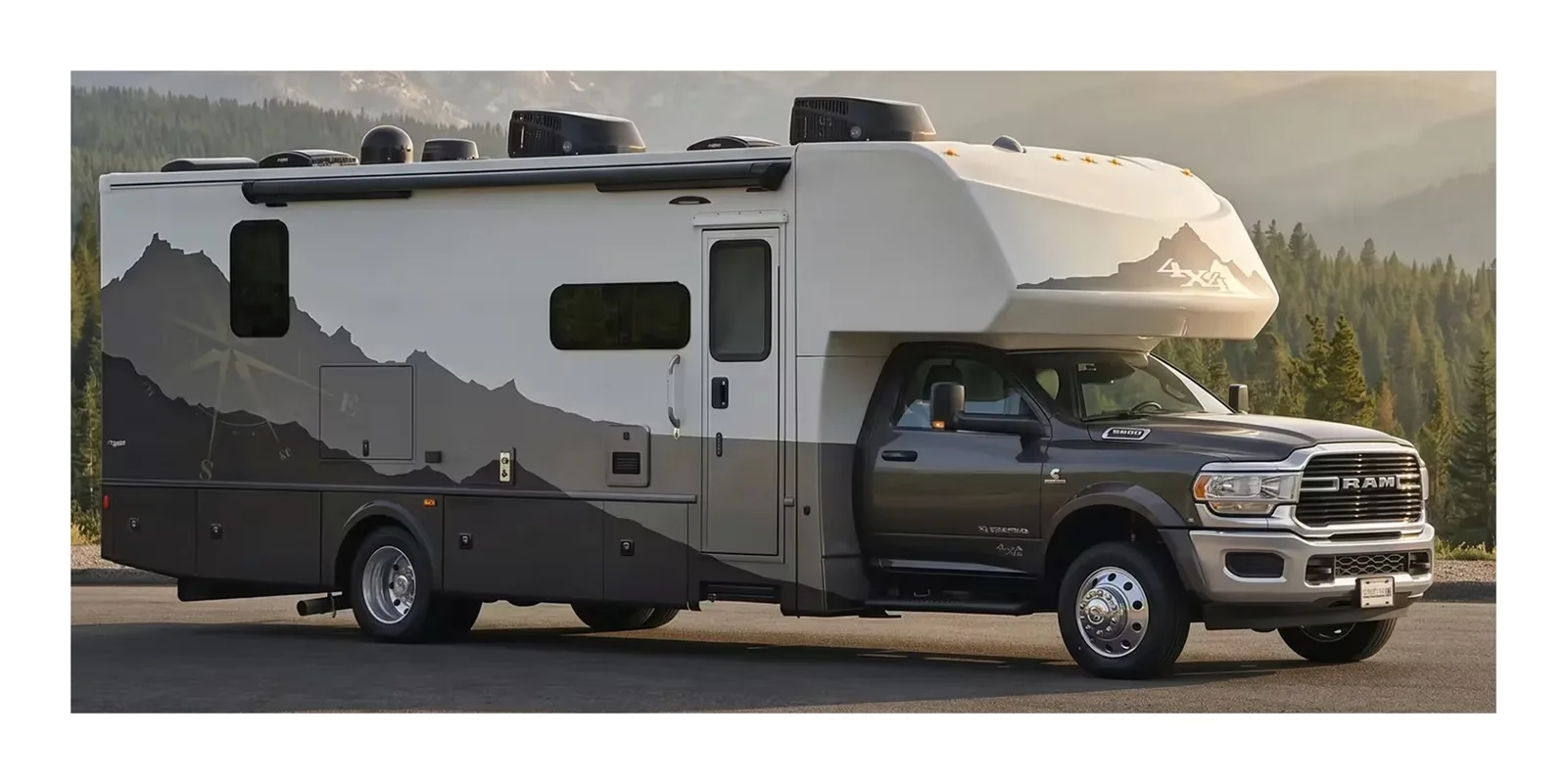

Line photo: Dynamax publishes one photo for the Isata 5 line, so it may show another floorplan. Windows and slides can differ from the 30FW described here.

Dynamax · Class C · 2027

Dynamax Isata 5 30FW

Factory four-wheel drive on a Ram 5500 with a Cummins diesel turns the Isata 5 into a Super C rated to tow 10,000 lbs. The 30FW is its two-slide open-living plan, with the queen bed in the rear slide, a sofa and dinette in the living slide, and a cab-over bunk. The 28SS is the one-slide private-bedroom alternative.

Approx. price: ~$302,694; maker starting price
Length: 33.25 ft
Sleeps: —

Specifications

Size

Exterior length: 33.25 ft
Exterior height: 12.33 ft
Slide-outs: 2

Tanks and power

Fresh water: 78 gal
Gray water: 45 gal
Black water: 45 gal
Factory solar: 200 W
House battery: Low-temp lithium auxiliary battery, 240Ah total (listed under Utilities); 3x lithium 720Ah in optional Xplorer Package
Generator: Onan 8kW diesel with auto transfer switch and auto gen start

Chassis

Chassis: Ram 5500 Big Horn, factory 4-wheel drive (19,500 GVWR / 37,500 GCWR)
Engine: Cummins 6.7L I6 turbo diesel, 360 hp / 800 lb-ft, 8-speed TorqueFlite HD
Fuel: Diesel

Standard equipment named by the maker

Factory 4x4 Ram 5500 chassis
Queen bed in rear slide; sofa and booth dinette in living slide
Cab-over bunk 50x80 in with privacy curtain
3,000W hybrid pure-sine inverter/charger
Enclosed and furnace-heated holding tanks
Heated steering wheel and power heated cab seats
Trailer hitch 10,000 lb tow / 750 lb tongue

Weights

2027 maker figures

GVWR: 19,500 lb
Dry weight (UVW): not published
Occupant + cargo (OCCC): not published
Towing capacity: 10,000 lb

What these weights mean →

Size, to scale

051015202530354045 ft

Dynamax Isata 5 30FW · 33.25 ft long · 12′4″ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
