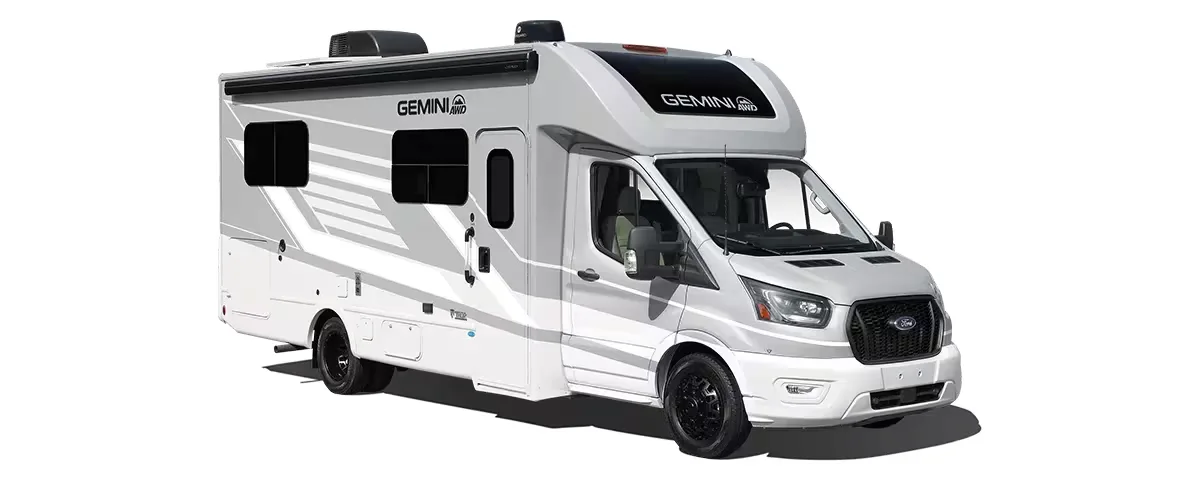

Line photo: Thor publishes one photo for the Gemini AWD line, so it may show another floorplan. Windows and slides can differ from the 23TW described here.

Thor · Class C · 2027

Thor Gemini AWD 23TW

All-wheel drive with Ford's EcoBoost V6 sets the Gemini apart from Thor's other gas Class Cs. The 23TW pairs a flip-up queen bed with Thor's Dream Dinette, while the longer 24KB uses twin beds instead. Also sold as the Compass AWD, around $173,000.

Approx. price: ~$172,900; maker MSRP
Length: 23.6 ft
Sleeps: 3

Specifications

Size

Exterior length: 23.6 ft
Exterior height: 11 ft
Sleeps: 3

Tanks and power

Fresh water: 31 gal
Gray water: 37 gal
Black water: 19 gal
Factory solar: 100 W
House battery: 12-volt Auxiliary House Battery
Generator: 50 State 4.0 kW Dual Gas/LP Generator

Chassis

Chassis: Ford
Engine: 3.5L V6 EcoBoost® Turbo (310 HP & 400 lb-ft Torque)
Fuel: Gas

Standard equipment named by the maker

All-Wheel Drive (AWD) System
100-watts Solar Panel with Controller
50 State 4.0 kW Dual Gas/LP Generator
Automatic Shoreline-to-Generator Transfer Switch
Ceiling Ducted 15,000 BTU Air Conditioner
Exterior Solar Port
Tankless Water Heater
Ceiling Ducted Air Conditioning System

Weights

2027 maker figures

GVWR: 11,000 lb
Dry weight (UVW): not published
Occupant + cargo (OCCC): not published
Towing capacity: 5,000 lb

What these weights mean →

Size, to scale

051015202530354045 ft

Thor Gemini AWD 23TW · 23.6 ft long · 11′ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
