Jayco · Fifth Wheel · 2027

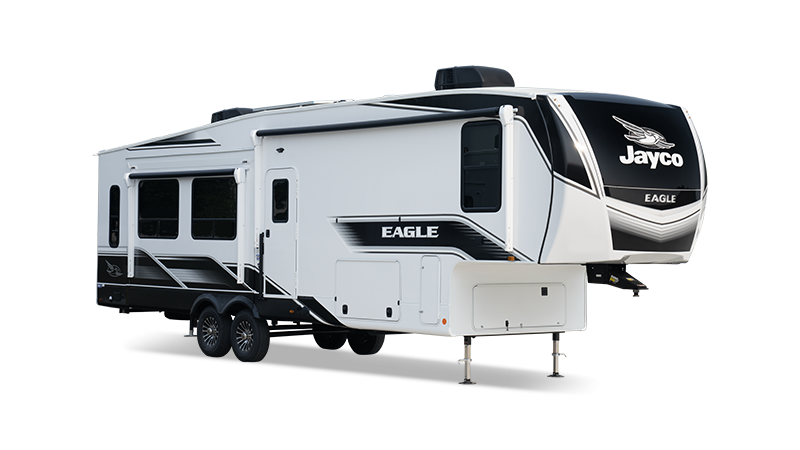

Jayco Eagle 321RSTS
Zero-degree-tested Climate Shield protection, a heated and ducted underbelly, a truss roof with plywood decking and a solar package all come standard on this four-sleeper fifth wheel, priced around $84,000. Ask the dealer what panel wattage is on the roof before counting on it off grid.
- Approx. price
- ~$84,477
- maker MSRP
- Length
- 35.4 ft
- Sleeps
- 4
Floorplan

Jayco’s drawing of the 321RSTS layout. Tap it for the full-size file.
Specifications
Size
- Exterior length
- 35.4 ft
- Exterior height
- 12.6 ft
- Sleeps
- 4
Tanks and power
- Fresh water
- 81 gal
- Gray water
- 87 gal
- Black water
- 50 gal
Standard equipment named by the maker
- 5 in. Magnum Truss™ w/ Plywood Roof Decking
- Climate Shield™ zero-degree tested weather protection: Fully enclosed and heated underbelly (ducted)
- 50-amp service with fully ducted A/C System
- 60K on-demand tankless water heater
- Overlander I Solar Package
- Inverter pre-wire (multiple locations throughout)
- Electric auto-leveling
- LED fireplace with 5,000 BTU electric space heater (select models)
What owners report
Drawn from 18 owners' accounts of the Jayco Eagle, mostly 2019–2026 units. It covers the whole Jayco Eagle line, not only this floorplan. Nobody here has camped in it; this is what people who bought one say.
Ceiling height is the detail owners of the Eagle HT bring up first: a family with a 6-foot-9 husband and a 6-foot-6 stepson chose one because ordinary bumper-pulls were too short inside, and other owners mention the full 7-foot ceilings and king beds. Weight is the catch. A 272RBOK owner would not pull theirs far with any half-ton they have owned and moved to an F-250; a 355MBQS owner calls the fifth wheel heavy enough to need a one-ton.
Winter reports are mixed. Some owners have ridden out sub-zero nights with skirting and a heated hose, while a full-timer in a 355MBQS calls Jayco's four-season claim disingenuous: comfort comes down to burning propane, and turning the thermostat down overnight can freeze lines.
Appliances are the repeat complaint on 2021–2025 units, especially fridges that will not hold temperature and tankless water heaters that swing hot and cold. Some owners describe units that were nothing but trouble, including a 2021 that already needs a whole new roof.
What owners like
- +Owners like the tall ceilings, 7 feet on the HT models, roomy enough for very tall families.
- +Several owners of 2019–2021 units describe them as solid, full-time capable rigs that have held up well.
- +Some owners have lived through sub-zero weather without frozen pipes, usually with skirting and a heated hose.
Common complaints
- −Fridges that will not hold temperature come up from several owners of 2021–2023 units, including one that several dealers could not diagnose.
- −Owners of 2025-era units report tankless water heaters that run lukewarm or go cold for a few seconds every half minute.
- −Even the HT trailers are heavier than the name suggests, and fifth wheel owners found they needed a heavier truck than planned.
- −Owners say the four-season package and heated underbelly fall short of a true cold-weather build.
- −The ducted dual air conditioners move little air where owners need it: a 355MBQS owner gets almost nothing from the bunk-room vent, and a 272RBOK owner finds running the second unit into the ducts adds little airflow.
- −A few owners had units with problem after problem, and one lost a whole summer of use while an awning repair sat at the dealer.
Questions owners ask
Can an Eagle be lived in through a cold winter?+
Owners have done it, down to about -20°F in South Dakota, but with professional skirting, a heated hose and plenty of propane or electric heat. A full-timer warns that dropping the thermostat overnight can still freeze lines, so plan for the fuel bill.
Weights
2027 maker figures
- Dry weight (UVW)
- 10,845 lb
- GVWR
- 13,200 lb
- Pin weight, dry
- 2,080 lb
- Cargo capacity (CCC)
- 2,355 lb
2,355 lb between brochure dry weight and GVWR. Water (8.3 lb a gallon), food, gear, propane and dealer-added options all come out of it.
What can tow it? A tow vehicle rated to pull at least 13,200 lb. That is the Jayco Eagle 321RSTS’s GVWR, the most it may weigh loaded, and the number to hold against a tow rating instead of the dry weight. Its pin weight (2,080 lb dry, more once loaded) sits on a hitch in the pickup’s bed and comes out of the truck’s payload, along with passengers and cargo.
Size, to scale
- Jayco Eagle 321RSTS · 35.4 ft long · 12′7″ tall
Cold-weather build: Standard on the floor-plan page: 'Climate Shield™ zero-degree tested weather protection: Fully enclosed and heated underbelly (ducted)'
