Forest River · Toy Hauler · 2027

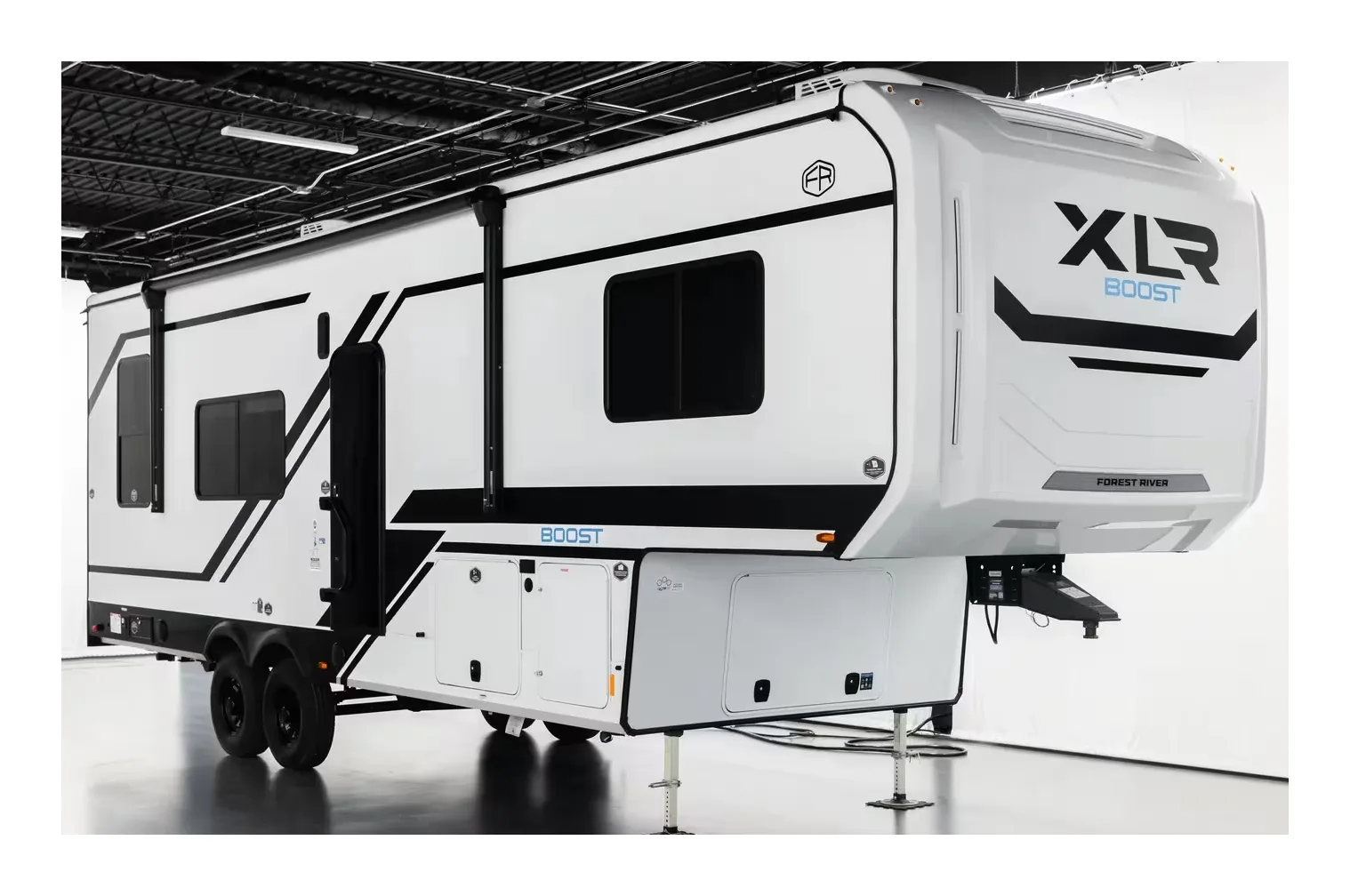

Forest River XLR Boost 286B

Fifth-wheel hitch, rear ramp door and a fuel station: the 286B is the gooseneck version of the XLR Boost toy hauler. A Euro garage bed, docking station and 200 W of solar come in the standard XPLORE package, and generator prep with the fuel station is part of the Convenience package. It sleeps six.

Approx. price: ~$63,999; dealer advertised price
Length: 32.25 ft
Sleeps: 6

Specifications

Size

Exterior length: 32.25 ft
Exterior height: 13.42 ft
Sleeps: 6
Slide-outs: 0

Tanks and power

Fresh water: 150 gal
Gray water: 97 gal
Black water: 40 gal
Factory solar: 200 W

Standard equipment named by the maker

Fifth-wheel toy hauler with rear ramp door
40 gal fuel tank with pumping station and generator prep (Fifth Wheels Convenience package)
Manual Euro garage bed, docking station, 200W solar (XPLORE package, standard)
60K BTU tankless water heater
Laminated aluminum-framed walls, block foam insulation (Climate Comfort package)

Weights

2027 maker figures

Dry weight (UVW): 9,524 lb
GVWR: 14,824 lb
Pin weight, dry: 2,095 lb
Cargo capacity (CCC): 5,300 lb

5,300 lb between brochure dry weight and GVWR. Water (8.3 lb a gallon), food, gear, propane and dealer-added options all come out of it.

What these weights mean →

Size, to scale

051015202530354045 ft

Forest River XLR Boost 286B · 32.25 ft long · 13′5″ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
