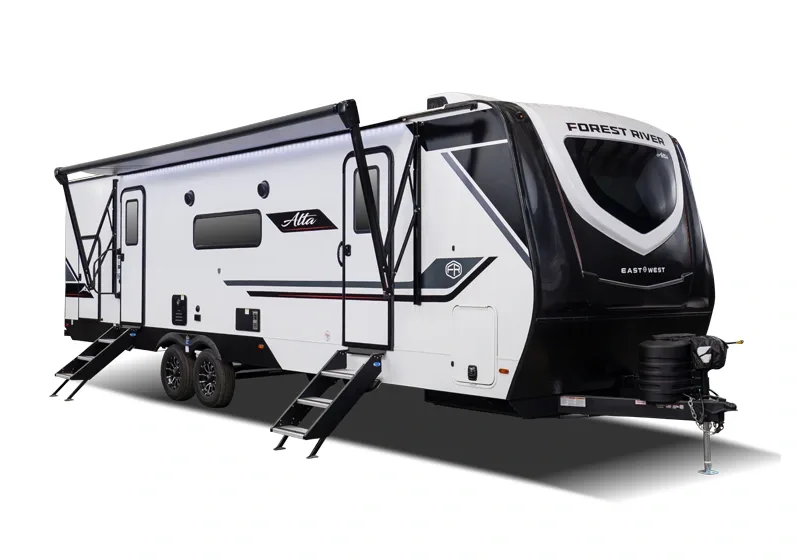

Line photo: East to West publishes one photo for the Alta line, so it may show another floorplan. Windows and slides can differ from the 2400KTH described here.

East to West · Toy Hauler · 2027

East to West Alta 2400KTH

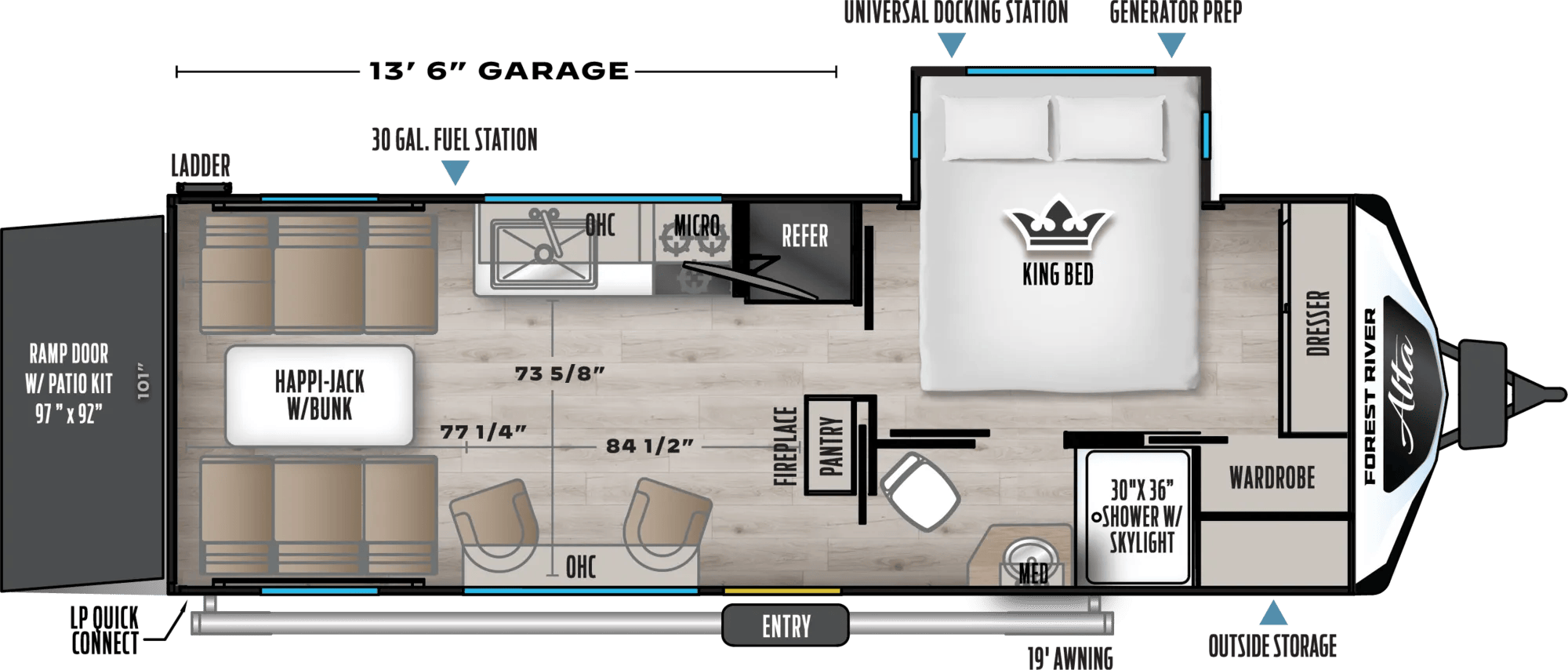

Shortest of the Alta toy haulers, the 2400KTH puts a garage with a ramp door and a Happi-Jack bunk system behind a single slide. Cargo capacity is large relative to its dry weight. The 200 W solar package, a second A/C and a power package are mandatory, while a generator is optional, with prep and a fuel station built in.

Approx. price: —
Length: 28.08 ft
Sleeps: —

Specifications

Size

Exterior length: 28.08 ft
Exterior height: 12.33 ft
Slide-outs: 1

Tanks and power

Fresh water: 106 gal
Gray water: 60 gal
Black water: 30 gal
Factory solar: 200 W
House battery: Battery included in the mandatory Alta 200W Solar Package (type/Ah not stated)

Standard equipment named by the maker

13'6" garage with ramp door and patio kit (97x92-in opening)
Happi-Jack bunk system in garage
30-gallon fuel station and generator prep (6K generator optional, toy haulers only)
Marine-grade composite floor
Enclosed and heated underbelly; insulated forced-air heated floors
Fully laminated 2-in sidewalls with 5-in vacuum-bonded roof
Second A/C and Alta Power Package mandatory on 2400KTH
200W solar package mandatory on all Alta

Weights

2027 maker figures

Dry weight (UVW): 7,343 lb
GVWR: 11,565 lb
Hitch weight, dry: 1,165 lb
Cargo capacity (CCC): 4,222 lb

4,222 lb between brochure dry weight and GVWR. Water (8.3 lb a gallon), food, gear, propane and dealer-added options all come out of it.

What these weights mean →

Size, to scale

051015202530354045 ft

East to West Alta 2400KTH · 28.08 ft long · 12′4″ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
