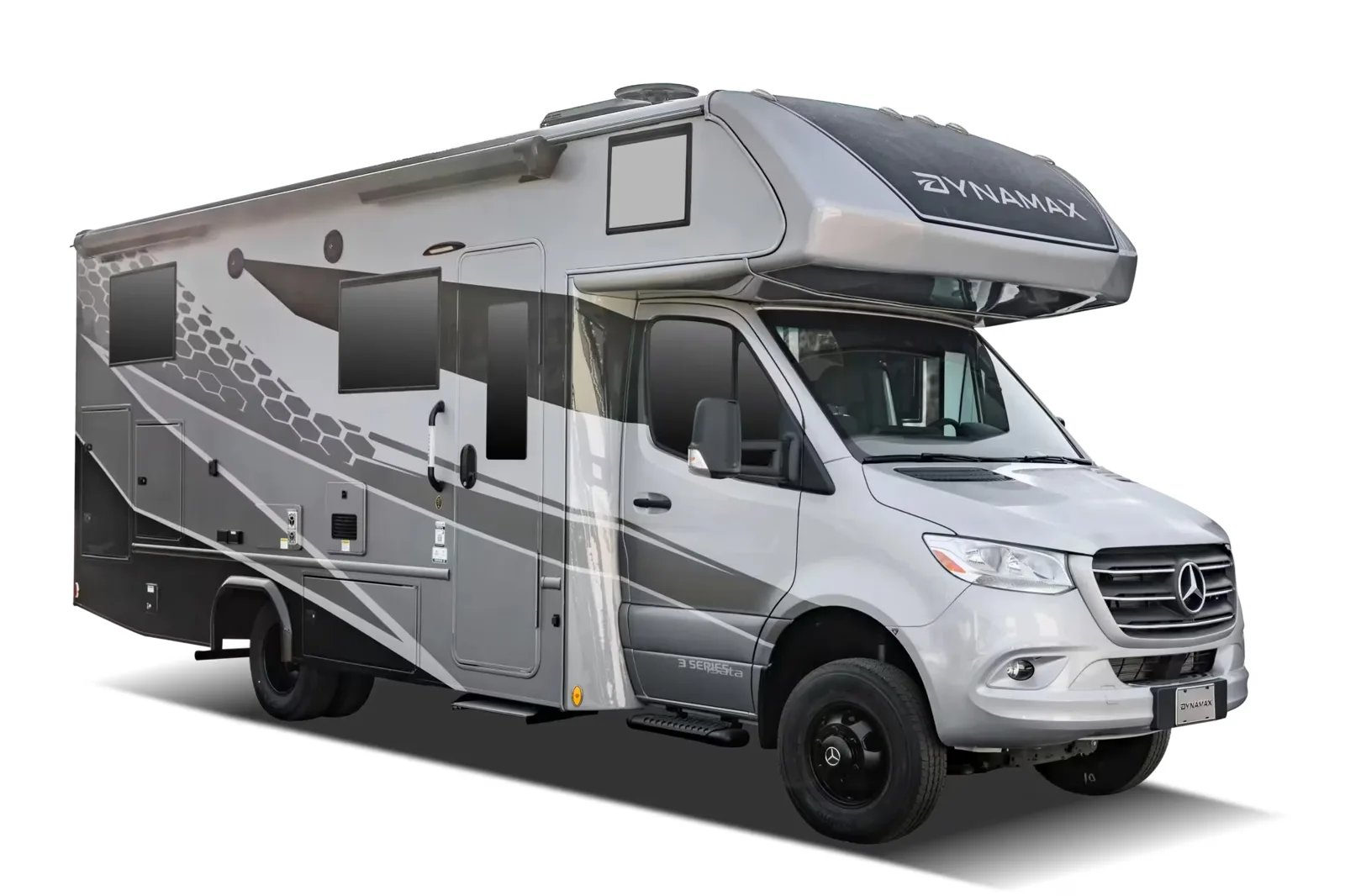

Line photo: Dynamax publishes one photo for the Isata 3 line, so it may show another floorplan. Windows and slides can differ from the 24FW described here.

Dynamax · Class C · 2027

Dynamax Isata 3 24FW

Dynamax's Sprinter-based Class C has a full-wall slide that opens the living area, plus a queen bed, a booth dinette and a full bath. A diesel Truma Combi heats air and water, and an LP generator, lithium batteries and 200 W of solar are standard, with a larger power package offered.

Approx. price: —
Length: 24.58 ft
Sleeps: —

Specifications

Size

Exterior length: 24.58 ft
Exterior height: 11.42 ft
Slide-outs: 1

Tanks and power

Fresh water: 35 gal
Gray water: 32 gal
Black water: 32 gal
Factory solar: 200 W
House battery: Dual low-temp lithium auxiliary batteries (200Ah total)
Generator: Flex Power 4000i LP with auto transfer switch

Chassis

Chassis: Mercedes-Benz Sprinter
Engine: 2.0L I4 turbo diesel (208 hp)
Fuel: Diesel

Standard equipment named by the maker

Full-wall slide with open living area
Queen bed, booth dinette, full bath
Truma Combi D6E diesel furnace/water heater
200W glass solar panel with 30A controller
2,000W pure sine inverter
Automatic 4-point leveling jacks
Quad-view camera system

Weights

2027 maker figures

GVWR: 11,030 lb
Dry weight (UVW): not published
Occupant + cargo (OCCC): not published
Towing capacity: 4,220 lb

What these weights mean →

Size, to scale

051015202530354045 ft

Dynamax Isata 3 24FW · 24.58 ft long · 11′5″ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
