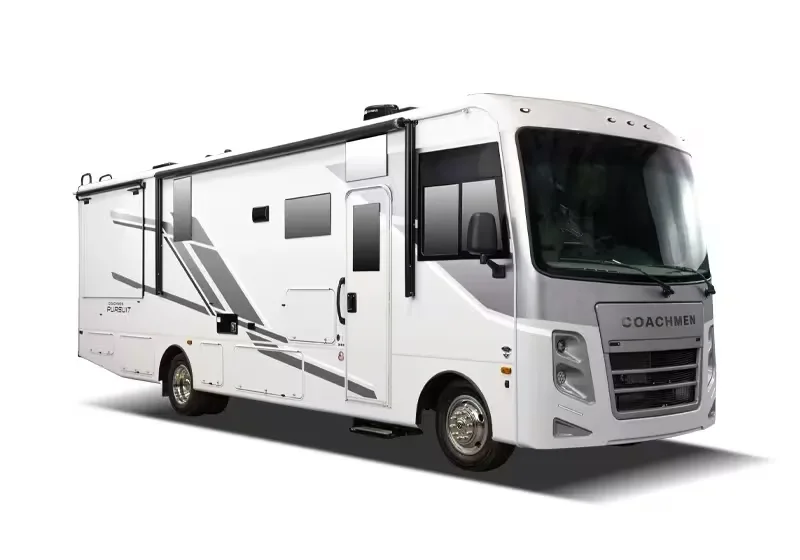

Line photo: Coachmen publishes one photo for the Pursuit line, so it may show another floorplan. Windows and slides can differ from the 29SS described here.

Coachmen · Class A · 2027

Coachmen Pursuit 29SS

Coachmen's entry-level gas Class A comes in this shorter Pursuit plan, about 30 feet long on a Ford F-53 with the 7.3L V8 and one slide that widens the living area. A 5.5 kW generator and automatic leveling jacks are standard, and it sleeps five.

Approx. price: —
Length: 30.25 ft
Sleeps: 5

Specifications

Size

Exterior length: 30.25 ft
Exterior height: 12 ft
Sleeps: 5
Slide-outs: 1

Tanks and power

Fresh water: 50 gal
Gray water: 35 gal
Black water: 35 gal
Generator: 5.5 kW gas

Chassis

Chassis: Ford F-53
Engine: 7.3L V8
Fuel: Gas

Standard equipment named by the maker

Entry-level gas Class A, 30'3" with slide-out living area
Ford F53 chassis, 7.3L V8
5.5 kW gas generator
Automatic leveling jacks
8,000 lb towing hitch with 7-way plug
Solar panel with controller (wattage not stated)
Power heated mirrors

Weights

2027 maker figures

GVWR: 18,000 lb
Dry weight (UVW): not published
Occupant + cargo (OCCC): not published
Towing capacity: 5,000 lb

What these weights mean →

Size, to scale

051015202530354045 ft

Coachmen Pursuit 29SS · 30.25 ft long · 12′ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
