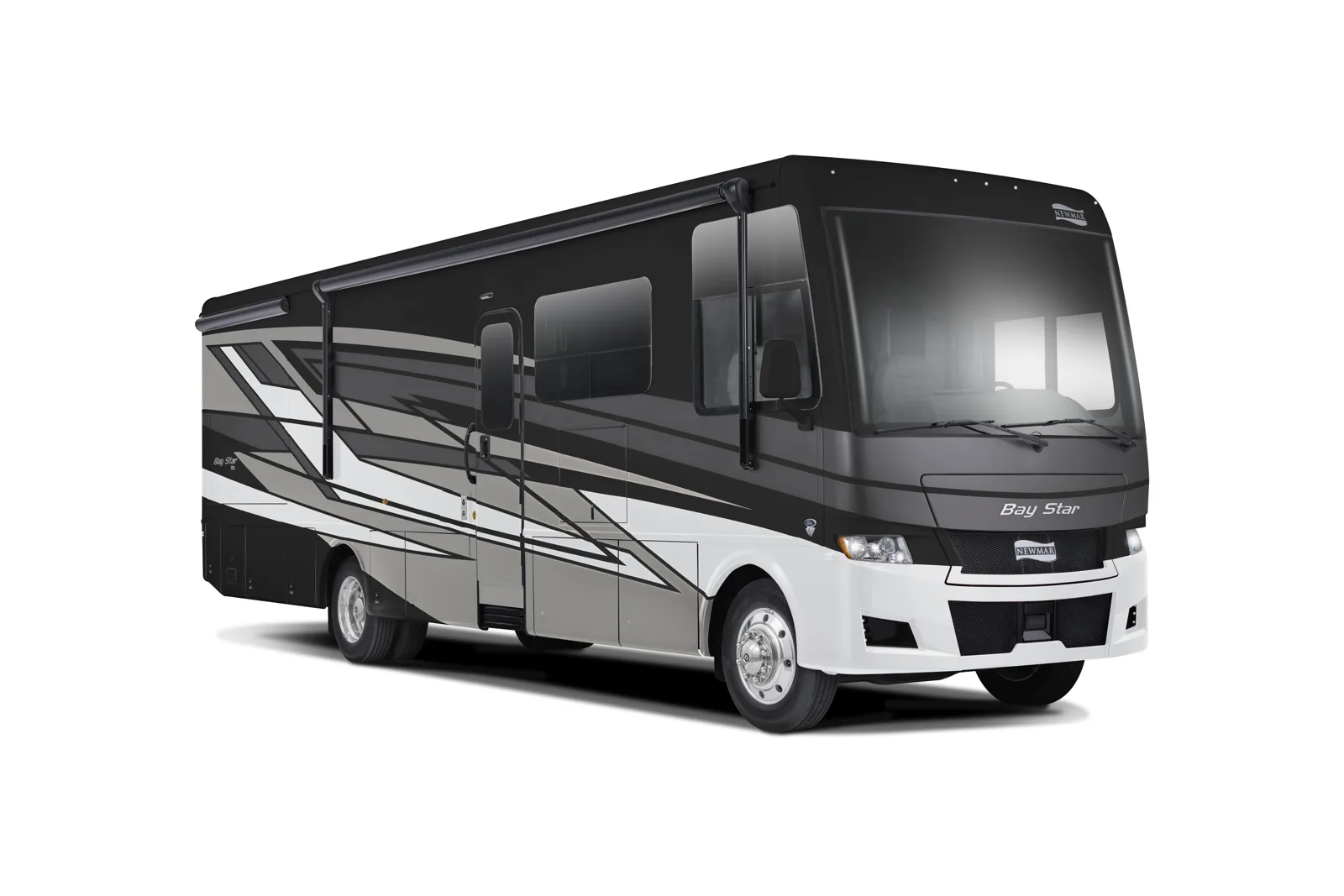

Line photo: Newmar publishes one photo for the Bay Star line, so it may show another floorplan. Windows and slides can differ from the 3114 described here.

Newmar · Class A · 2027

Newmar Bay Star 3114

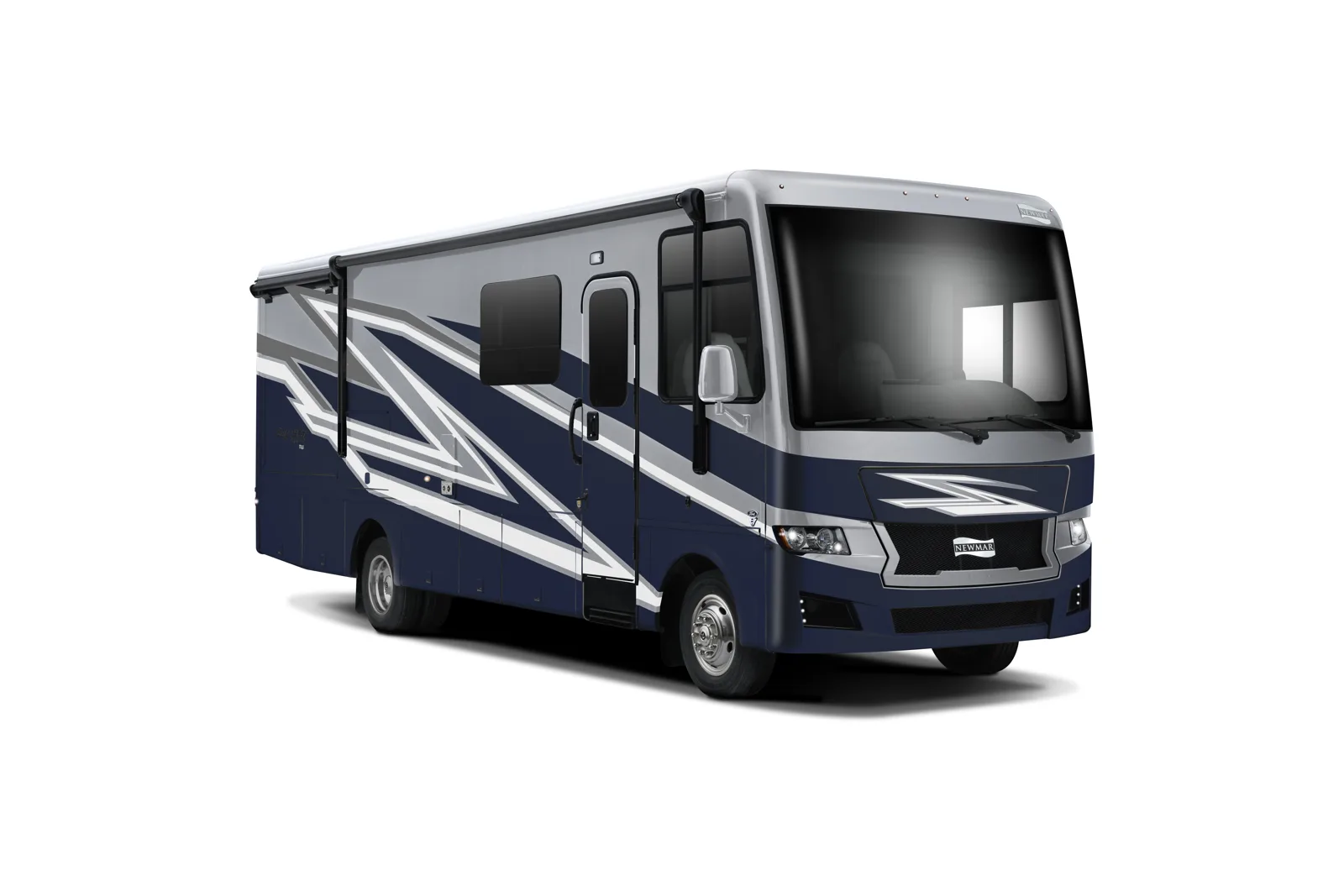

Newmar says this is the shortest Bay Star floorplan and its best seller. Compared with the Bay Star Sport 3014 it is wider and heavier with a higher GVWR, and it moves up to a king bed while keeping the patio-side dinette and two slides.

Approx. price: ~$280,840; maker starting price for the line
Length: 31.9 ft
Sleeps: 5

Specifications

Size

Exterior length: 31.9 ft
Exterior height: 12.8 ft
Sleeps: 5
Slide-outs: 2

Tanks and power

Fresh water: 75 gal
Gray water: 60 gal
Black water: 40 gal
Factory solar: 10 W
House battery: 6 house batteries, 600 Ah total (standard)
Generator: Cummins Onan 5.5 kW

Chassis

Chassis: Ford
Engine: Ford 7.3L, 335 hp; Ford 6-speed
Fuel: Gas

Standard equipment named by the maker

Ford F-53 chassis, 7.3L V8 335 hp, TorqShift 6
Patio-side dinette
King bed, two slides
Solar prep only (10 W chassis panel)
King bed, 1.0 baths
Washer/dryer: Optional

Weights

2027 maker figures

GVWR: 26,000 lb
Dry weight (UVW): 20,050 lb
Occupant + cargo (OCCC): 5,950 lb
Towing capacity: 5,000 lb

5,950 lb between brochure dry weight and GVWR. Water (8.3 lb a gallon), food, gear, propane and dealer-added options all come out of it.

What these weights mean →

Size, to scale

051015202530354045 ft

Newmar Bay Star 3114 · 31.9 ft long · 12′10″ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
