Keystone Fuzion 419 vs Brinkley Model G 3950

Keystone · Toy Hauler

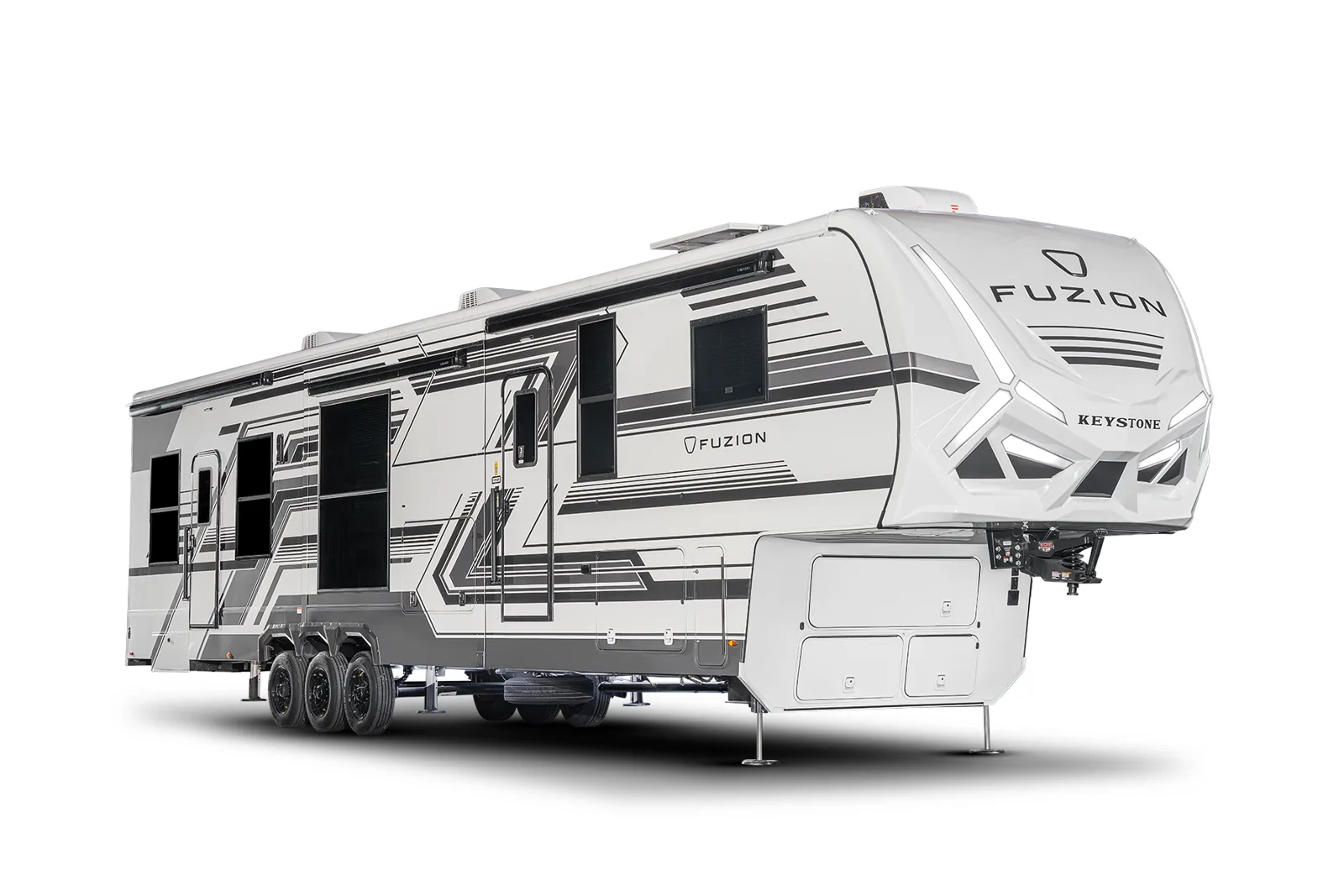

Keystone Fuzion 419

—

45′5″ long, drawn to scale · no maker photo

Brinkley · Toy Hauler

The difference that matters

Two 45 ft fifth-wheel toy haulers with near-equal pins, 3,770 lb on the Fuzion and 3,450 lb on the Brinkley. The Fuzion is the lighter trailer, 17,071 lb dry against 18,900, and has the longer garage at 16 ft against 14 ft, plus a Lippert power ramp door and Titan hydraulic leveling. It also carries a very large 173 gal fresh tank with 104 gal gray and black, sleeps eight and has a 5,500 W Flex Power generator with a 30 gal fuel tank.

The Brinkley Model G 3950 is the off-grid build. It comes with 800 W of solar on a Victron MPPT controller, a 200 Ah self-heating lithium bank and a dual-fuel FlexPower 5500 inverter generator fed from a 60 gal fuel station. It rides a triple axle on 17.5 in 16-ply tires, has a 3,000 lb rated low-pitch ramp, fold-away garage bath walls and a 101 in wide body. It sleeps nine with three slides, and its gray capacity is 156 gal.

Keystone Fuzion 419: Riders with long machines who want a 16 ft garage, a huge fresh tank and hydraulic leveling.
Brinkley Model G 3950: Toy hauler owners who dry camp for days and want solar, lithium and an inverter generator included.

Weights

2027 maker figures

Dry weight (UVW): 17,071 lb
GVWR: not published
Pin weight, dry: 3,770 lb
Cargo capacity (CCC): 3,929 lb

Weights

2027 maker figures

Dry weight (UVW): 18,900 lb
GVWR: 23,000 lb
Pin weight, dry: 3,450 lb
Cargo capacity (CCC): not published

4,100 lb between brochure dry weight and GVWR. Water (8.3 lb a gallon), food, gear, propane and dealer-added options all come out of it.

Spec for spec

	Keystone Fuzion 419	Brinkley Model G 3950
Dry weight (UVW)	17,071 lb	18,900 lb
GVWR	—	23,000 lb
Hitch / pin weight, dry	3,770 lb	3,450 lb
Cargo capacity (CCC / OCCC)	3,929 lb	—
GVWR minus dry weight	—	4,100 lb
Exterior length	44.5 ft	45.42 ft
Exterior height	13.2 ft	13.33 ft
Sleeps	8	9
Slide-outs	—	3
Fresh water	173 gal	150 gal
Gray water	104 gal	156 gal
Black water	104 gal	85 gal
Factory solar	None	800 W
House battery	—	200Ah self-heating lithium (standard)
Generator	5,500 Flex Power generator w/ 30-gal. fuel tank	FlexPower 5500 EFI dual-fuel (gas/LP) inverter generator (standard)

Bold is the lighter or larger figure. A dash means the maker does not publish it.

To scale

051015202530354045 ft

Keystone Fuzion 419 · 44.5 ft long · 13′2″ tall
Brinkley Model G 3950 · 45.42 ft long · 13′4″ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
