2027 Thor Delano 24FB

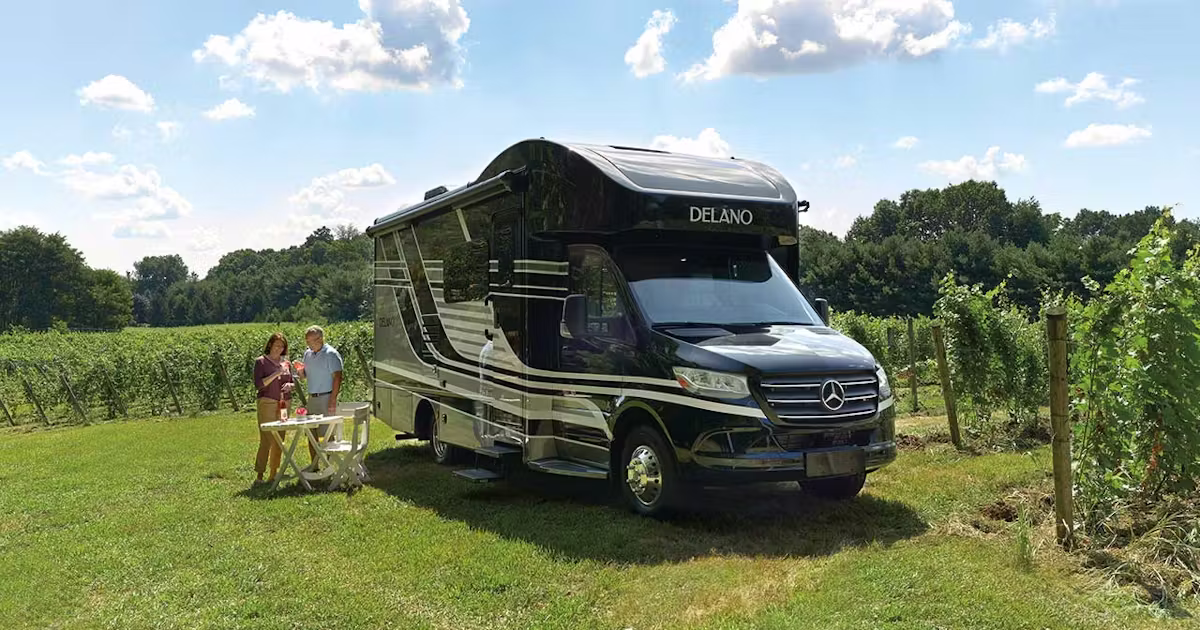

Line photo: Thor publishes one photo for the Delano line, so it may show another floorplan. Windows and slides can differ from the 24FB described here.

Thor · Class C · 2027

Thor Delano 24FB

Sprinter-cutaway Class C with a sofa that folds into a Murphy bed opposite Thor's Dream Dinette. Mercedes driver assists (active braking, lane keeping, distance cruise), heated leatherette captain's chairs and auto-leveling jacks are standard. Around $232,000; the Tiburon is the same coach under another name.

Approx. price
~$232,260
maker MSRP
Length
25.7 ft
Sleeps
4
Thor’s page for this model →

Floorplan

Thor Delano 24FB floorplan drawing

Thor’s drawing of the 24FB layout. Tap it for the full-size file.

Specifications

Size

Exterior length
25.7 ft
Exterior height
11.2 ft
Sleeps
4

Tanks and power

Factory solar
200 W
House battery
12-volt Auxiliary House Battery
Generator
50 State 4.0 kW LP Gas Generator

Chassis

Chassis
Mercedes
Engine
2.0L I-4 (211 HP & 332 lb-ft Torque)
Fuel
Diesel

Standard equipment named by the maker

  • Deluxe Heated/Power Exterior Mirrors
  • Leatherette Captain’s Chairs Heated Electric Adjustable Driver/Passenger Seats
  • Automatic Leveling Jacks with Touchpad Controls
  • Mercedes-Benz® Safety Package Includes: Active Braking Assist, Attention Assist, Active Lane Keeping Assist, Wet Wiper System & Distance Regulator Distronic Plus
  • 1,000-watts Inverter for Entertainment Systems and Select Outlets
  • 200-watts Solar Charging System with Power Controller
  • 50 State 4.0 kW LP Gas Generator
  • Automatic Shoreline-to-Generator Transfer Switch

Weights

2027 maker figures

GVWR
12,125 lb
Dry weight (UVW)
not published
Occupant + cargo (OCCC)
not published
Towing capacity
5,000 lb
What these weights mean →

Tow vehicle: none needed. The Thor Delano 24FB is a Class C motorhome and drives itself. It is rated to tow up to 5,000 lb behind it.

Size, to scale

051015202530354045 ft
  • Thor Delano 24FB · 25.7 ft long · 11′2″ tall
Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.

Compared with

2027 Thor Magnitude X32Line photo

Class C · Thor

Thor Magnitude X32

Length
33.2 ft
Sleeps
4
GVWR
19,500 lb
  • 500 W solar
  • Generator
  • Tows 10,000 lb

~$284,060

2027 Thor Gemini AWD 23TWLine photo

Class C · Thor

Thor Gemini AWD 23TW

Length
23.6 ft
Sleeps
3
GVWR
11,000 lb
  • 100 W solar
  • Generator
  • Tows 5,000 lb

~$172,900

2027 Thor Gemini AWD 24KB

Class C · Thor

Thor Gemini AWD 24KB

Length
25.8 ft
Sleeps
3
GVWR
11,000 lb
  • 100 W solar
  • Generator
  • Tows 5,000 lb

~$172,900

2027 Thor Four Winds 30WLine photo

Class C · Thor

Thor Four Winds 30W

Length
32 ft
Sleeps
5
GVWR
14,500 lb
  • 100 W solar
  • Generator
  • Tows 8,000 lb

~$164,080

Where these figures come from

Taken from these pages. Options and later model-year changes can move any of them.
