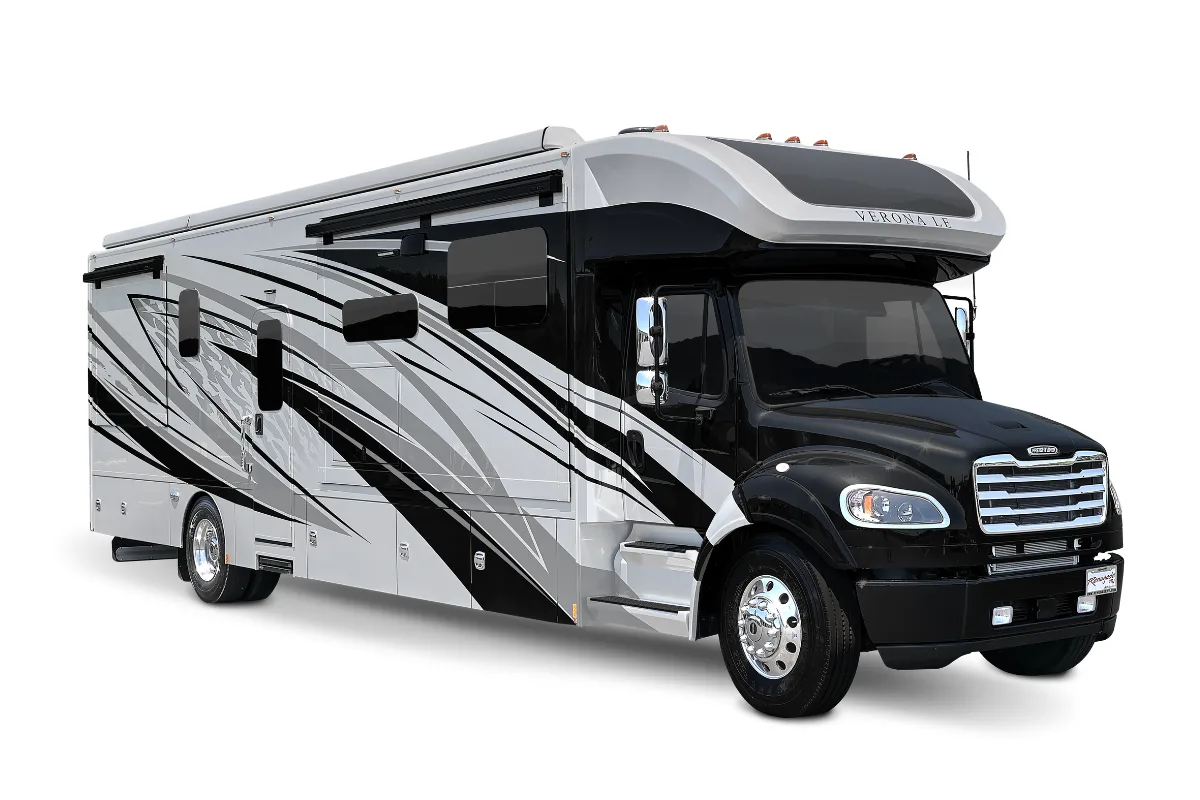

Line photo: Renegade publishes one photo for the Verona line, so it may show another floorplan. Windows and slides can differ from the 36VSB described here.

Renegade · Class C · 2027

Renegade Verona 36VSB

Super C on a Freightliner M2 medium-duty chassis with a Cummins diesel, an Allison transmission and a 20,000-lb hitch rating. The 36VSB is the shortest Verona; the 40-foot plans add bunks or a rear bath. Aqua-Hot hydronic heat with engine pre-heat, an 8 kW diesel generator, a residential French-door fridge and porcelain tile are standard.

Approx. price: —
Length: 36.67 ft
Sleeps: —

Specifications

Size

Exterior length: 36.67 ft
Exterior height: 12.83 ft
Slide-outs: 2

Tanks and power

Fresh water: 150 gal
Gray water: 75 gal
Black water: 75 gal
Factory solar: None
House battery: 1x 330Ah AGM house battery (2x 270Ah lithium is an option)
Generator: Onan 8kW quiet diesel with auto gen start

Chassis

Chassis: Freightliner M2-106 Plus (37,600 GVWR / 60,000 GCWR), 285-in wheelbase
Engine: Cummins L9, 360 hp / 1,150 lb-ft, Allison 3200 TRV 6-speed
Fuel: Diesel

Standard equipment named by the maker

Aqua-Hot 450D zoned hydronic heat and continuous hot water with engine pre-heat
20,000 lb hitch rating / 2,000 lb tongue
3,000W true sine wave inverter
150-gallon fresh tank
Full maintenance wet bay with power hose reel
Porcelain tile flooring and solid maple cabinetry
Four-point hydraulic leveling with app
18 cu ft French-door residential refrigerator

Weights

2027 maker figures

GVWR: 37,600 lb
Dry weight (UVW): not published
Occupant + cargo (OCCC): not published
Towing capacity: 20,000 lb

What these weights mean →

Size, to scale

051015202530354045 ft

Renegade Verona 36VSB · 36.67 ft long · 12′10″ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
