2027 Coachmen Mirada 35OS

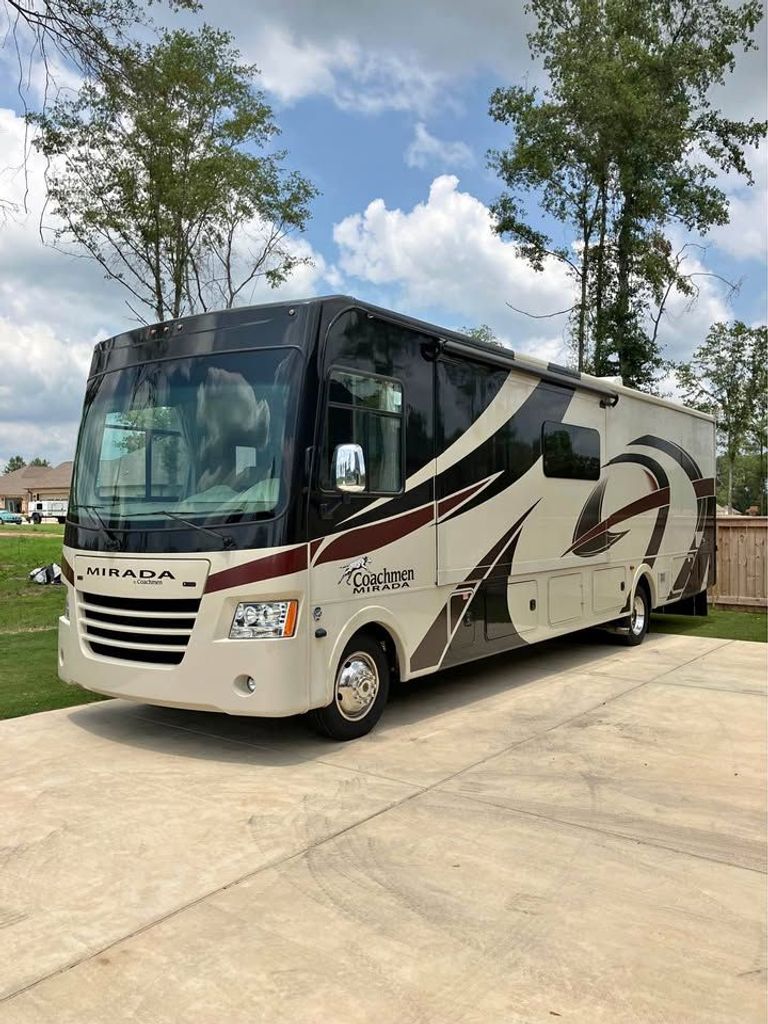

Line photo: Coachmen publishes one photo for the Mirada line, so it may show another floorplan. Windows and slides can differ from the 35OS described here.

Coachmen · Class A · 2027

Coachmen Mirada 35OS

Double slides, including a full-wall slide on the door side, open up the Mirada 35OS, a gas Class A on the Ford F-53. A king bed with a CPAP cabinet and a drop-down bunk over the cab let it sleep six, and it is longer and heavier than the Pursuit 29SS, with an 8,000 lb towing hitch.

Approx. price
~$149,994
dealer advertised price
Length
36.83 ft
Sleeps
6
Coachmen’s page for this model →

Floorplan

Coachmen Mirada 35OS floorplan drawing

Coachmen’s drawing of the 35OS layout. Tap it for the full-size file.

Specifications

Size

Exterior length
36.83 ft
Exterior height
12.42 ft
Sleeps
6
Slide-outs
2

Tanks and power

House battery
Dual coach batteries
Generator
5.5 kW gas

Chassis

Chassis
Ford F-53
Engine
7.3L V8
Fuel
Gas

Standard equipment named by the maker

  • Double-slide plan with full-wall door-side slide
  • King bed with CPAP cabinet
  • Drop-down front cab bunk
  • Automatic leveling jacks
  • HD backup and side cameras
  • 8,000 lb towing hitch with 7-way plug
  • Solar panel with controller (wattage not stated)

Weights

2027 maker figures

GVWR
22,000 lb
Dry weight (UVW)
not published
Occupant + cargo (OCCC)
not published
Towing capacity
8,000 lb
What these weights mean →

Tow vehicle: none needed. The Coachmen Mirada 35OS is a Class A motorhome and drives itself. It is rated to tow up to 8,000 lb behind it.

Size, to scale

051015202530354045 ft
  • Coachmen Mirada 35OS · 36.83 ft long · 12′5″ tall
Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.

Compared with

2027 Coachmen Pursuit 29SSLine photo

Class A · Coachmen

Coachmen Pursuit 29SS

Length
30.25 ft
Sleeps
5
GVWR
18,000 lb
  • 1 slide
  • Generator
  • Tows 5,000 lb

~$106,994

2027 Coachmen Nova 20C

Class B · Coachmen

Coachmen Nova 20C

Length
20.92 ft
Sleeps
2
GVWR
9,350 lb
  • 220 W solar
  • Tows 2,150 lb
  • 27 gal fresh

~$148,497

2027 Coachmen Beyond 22C

Class B · Coachmen

Coachmen Beyond 22C

Length
22.17 ft
Sleeps
2
GVWR
10,360 lb
  • 195 W solar
  • Generator
  • Tows 2,240 lb

~$145,992

2026 Coachmen Leprechaun 260DSLine photo

Class C · Coachmen

Coachmen Leprechaun 260DS

Length
27.42 ft
Sleeps
6
GVWR
14,500 lb
  • 1 slide
  • Generator
  • Tows 7,500 lb

~$120,730

10 owner accounts →

Where these figures come from

Taken from these pages. Options and later model-year changes can move any of them.
