2027 Casita Spirit Deluxe 17

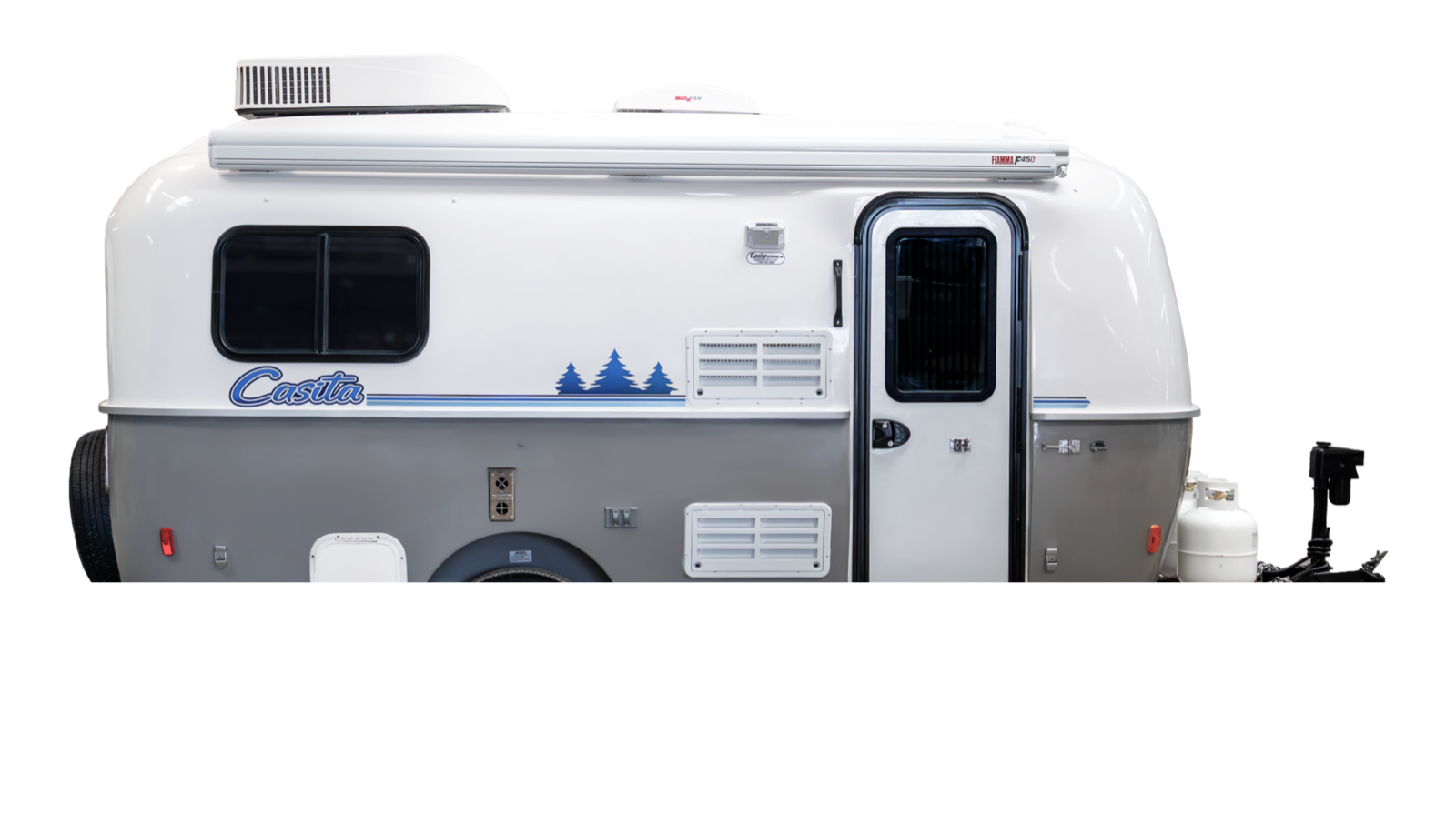

Line photo: Casita publishes one photo for the Spirit line, so it may show another floorplan. Windows and slides can differ from the 17 Deluxe described here.

Casita · Travel Trailer · 2027

Casita Spirit Deluxe 17

Seventeen feet of molded fiberglass that sleeps up to three, with a wet bath and water heater in this Deluxe build. Casita sells the Spirit factory-direct at around $34,000; air conditioning and the lithium-and-solar package are options, so the base trailer runs on a single AGM battery.

Approx. price
~$33,999
maker starting price
Length
17 ft
Sleeps
3
Casita’s page for this model →

Specifications

Size

Exterior length
17 ft
Exterior height
8.9 ft
Sleeps
3
Slide-outs
0

Tanks and power

Factory solar
None
House battery
Group 31 AGM, 100 Ah (per maker FAQ); 300 Ah LiFePO4 + 2,000 W inverter + 200 W portable panel optional

Standard equipment named by the maker

  • Deluxe: wet bath with shower; sleeps up to three (maker)
  • Molded fiberglass two-piece shell
  • Fully encased composite subfloor (new standard for 2027)
  • 4.3 cu ft 12V refrigerator
  • High-lift axle package with 15" steel wheels standard
  • Galley standard; deluxe models add wet bath with shower and water heater
  • Two 20 lb propane tanks (maker FAQ)
  • Options: roof A/C with soft start, MaxxFan, solar/lithium package, video package

Weights

2027 maker figures

Dry weight (UVW)
2,530 lb
GVWR
3,500 lb
Hitch weight, dry
not published
Cargo capacity (CCC)
not published

970 lb between brochure dry weight and GVWR. Water (8.3 lb a gallon), food, gear, propane and dealer-added options all come out of it.

What these weights mean →

What can tow it? A tow vehicle rated to pull at least 3,500 lb. That is the Casita Spirit Deluxe 17’s GVWR, the most it may weigh loaded, and the number to hold against a tow rating instead of the dry weight. Loaded to that weight it puts roughly 350 lb to 525 lb on the hitch ball (10 to 15 percent), which comes out of the tow vehicle’s payload along with passengers and cargo. At 7,000 lb or less it is on our list of trailers a half-ton truck can pull.

Size, to scale

051015202530354045 ft
  • Casita Spirit Deluxe 17 · 17 ft long · 8′11″ tall
Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.

Compared with

2027 Casita Independence 17 DeluxeLine photo

Travel Trailer · Casita

Casita Independence 17 Deluxe

Length
17 ft
Sleeps
2
GVWR
3,500 lb
  • 2,530 lb dry

~$33,999

2027 Casita Patriot 15 DeluxeLine photo

Travel Trailer · Casita

Casita Patriot 15 Deluxe

Length
15 ft
Sleeps
2
GVWR
3,500 lb
  • 2,400 lb dry

~$31,999

2027 Casita Discovery LC 24Line photo

Travel Trailer · Casita

Casita Discovery LC 24

Length
24.2 ft
Sleeps
6
GVWR
6,000 lb
  • 45 gal fresh

~$46,999

2027 Jayco Jay Feather Air 18FBSLine photo

Travel Trailer · Jayco

Jayco Jay Feather Air 18FBS

Length
21.3 ft
Sleeps
3
GVWR
4,995 lb
  • 4-season
  • 200 W solar
  • 55 gal fresh

~$34,043

Where these figures come from

Taken from these pages. Options and later model-year changes can move any of them.
