2025 Winnebago Voyage 3033BH

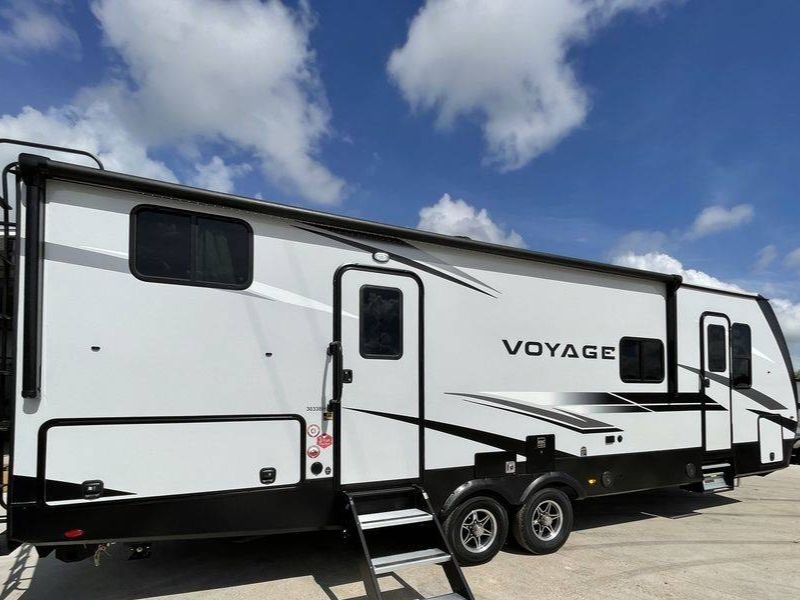

Line photo: Winnebago publishes one photo for the Voyage line, so it may show another floorplan. Windows and slides can differ from the 3033BH described here.

Winnebago · Travel Trailer · 2025

Winnebago Voyage 3033BH

Longest of the Winnebago travel trailers, with a rear bunkhouse, an outdoor kitchen, and a slide holding the dinette and tri-fold sofa. Fifty-amp service with second-A/C prep, auto stabilizing and a fireplace are standard. Winnebago now sells it as dealer stock only, so it may be on its way out. Around $71,000.

Approx. price
~$70,758
maker starting price
Length
34.3 ft
Sleeps
7
Winnebago’s page for this model →

Floorplan

Winnebago Voyage 3033BH floorplan drawing

Winnebago’s drawing of the 3033BH layout. Tap it for the full-size file.

Specifications

Size

Exterior length
34.3 ft
Exterior height
11.4 ft
Sleeps
7
Slide-outs
1

Tanks and power

Factory solar
200 W

Standard equipment named by the maker

  • 200-watt solar panel w/30-amp charge controller
  • Rear bunkhouse and outdoor kitchen
  • 50-amp service w/2nd A/C prep
  • 15,000 BTU A/C w/ducting; 30,000 BTU furnace; fireplace
  • 12-volt tank pad heaters
  • 5.1 auto stabilizing system
  • Dual 30-lb LP tanks, 10-gal water heater

Weights

2025 maker figures

Dry weight (UVW)
7,726 lb
GVWR
10,400 lb
Hitch weight, dry
832 lb
Cargo capacity (CCC)
not published

2,674 lb between brochure dry weight and GVWR. Water (8.3 lb a gallon), food, gear, propane and dealer-added options all come out of it.

What these weights mean →

What can tow it? A tow vehicle rated to pull at least 10,400 lb. That is the Winnebago Voyage 3033BH’s GVWR, the most it may weigh loaded, and the number to hold against a tow rating instead of the dry weight. Loaded to that weight it puts roughly 1,040 lb to 1,560 lb on the hitch ball (10 to 15 percent; the maker lists 832 lb dry), which comes out of the tow vehicle’s payload along with passengers and cargo.

Size, to scale

051015202530354045 ft
  • Winnebago Voyage 3033BH · 34.3 ft long · 11′5″ tall
Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.

Compared with

2027 Winnebago Thrive 25RLSLine photo

Travel Trailer · Winnebago

Winnebago Thrive 25RLS

Length
30.2 ft
Sleeps
6
GVWR
8,800 lb
  • 200 W solar
  • 60 gal fresh

~$56,630

2025 Winnebago Minnie 2801BHSLine photo

Travel Trailer · Winnebago

Winnebago Minnie 2801BHS

Length
32.4 ft
Sleeps
7
GVWR
8,800 lb
  • 1 slide
  • 200 W solar
  • 60 gal fresh

~$52,391

2025 Winnebago Micro Minnie 2225RLDiscontinuedLine photo

Travel Trailer · Winnebago

Winnebago Micro Minnie 2225RL

Length
25.4 ft
Sleeps
5
GVWR
6,000 lb
  • 1 slide
  • 200 W solar
  • 31 gal fresh

~$49,928

24 owner accounts →

2027 Winnebago Micro Minnie 2108DS

Travel Trailer · Winnebago

Winnebago Micro Minnie 2108DS

Length
22.4 ft
Sleeps
3
GVWR
5,500 lb
  • 1 slide
  • 200 W solar
  • 31 gal fresh

~$45,010

24 owner accounts →

Where these figures come from

Taken from these pages. Options and later model-year changes can move any of them.
