Pleasure-Way · Class B · 2027

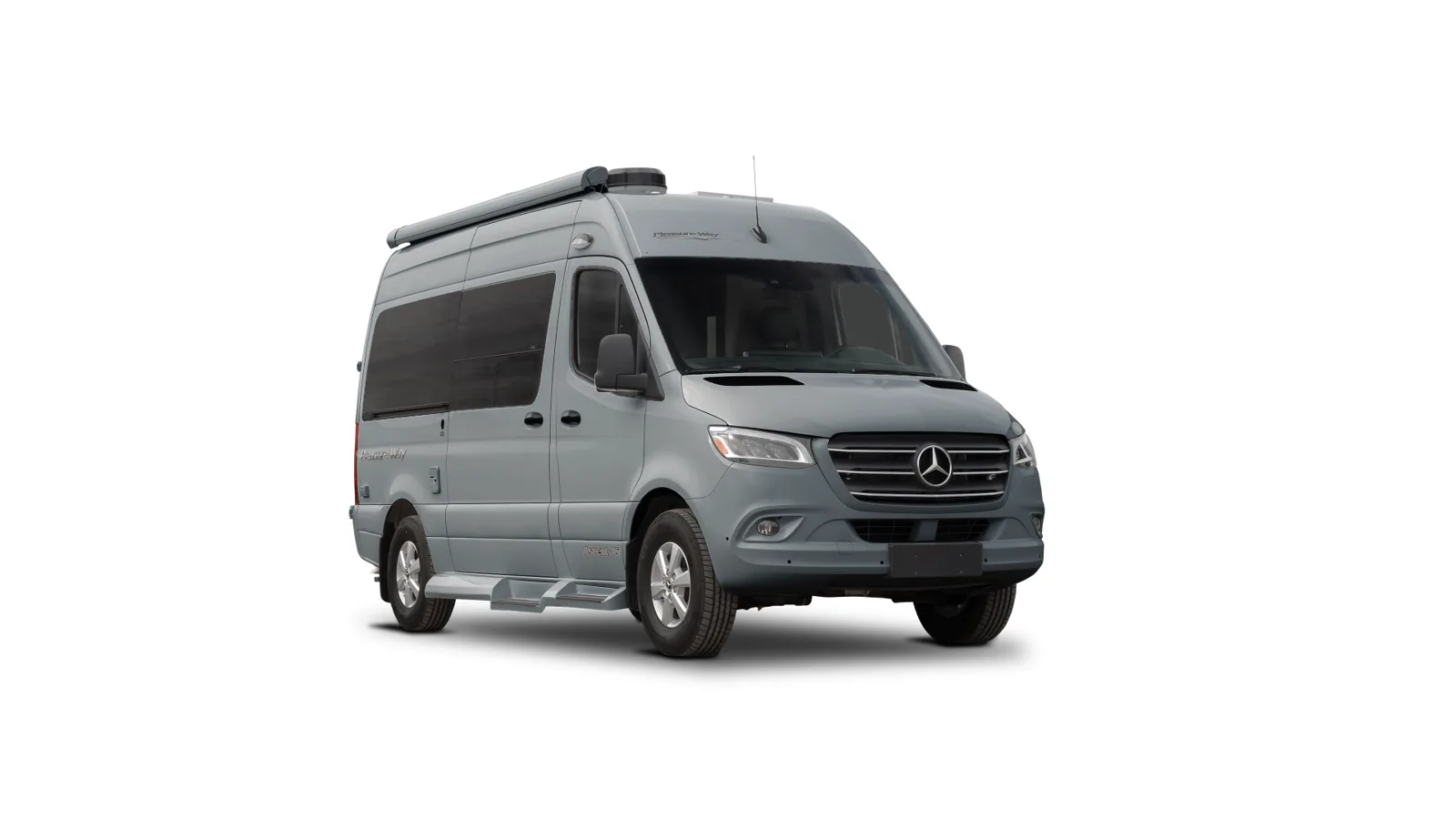

Pleasure-Way Ascent TS

Shortest Sprinter van Pleasure-Way builds, on the 144-inch wheelbase with the diesel and rear twin beds that convert to a king. Despite the short body its 4,880 lb tow rating is the highest of the Pleasure-Way vans, and it carries a large lithium bank, an LP generator and a small solar panel. Around $214,000.

Approx. price: ~$214,038; maker MSRP
Length: 19.4 ft
Sleeps: 2

Specifications

Size

Exterior length: 19.4 ft
Exterior height: 9.7 ft
Sleeps: 2
Slide-outs: 0

Tanks and power

Fresh water: 20 gal
Gray water: 15 gal
Black water: 12 gal
Factory solar: 100 W
House battery: 460Ah Eco-Ion LiFePO4 w/ internal heating (standard)
Generator: Onan QG 2500i LP 2.5 kW w/ AGS (standard)

Chassis

Chassis: Mercedes-Benz Sprinter 2500 (144" WB)
Engine: OM654 4-cyl turbo-diesel (high output)
Fuel: Diesel

Standard equipment named by the maker

Shortest Pleasure-Way Sprinter (19'5")
Rear twin beds convert to king
460Ah lithium, 3,000 W inverter
100 W solar
Onan 2.5 kW LP generator
4,880-lb towing capacity

Weights

2027 maker figures

GVWR: 9,050 lb
Dry weight (UVW): not published
Occupant + cargo (OCCC): not published
Towing capacity: 4,880 lb

What these weights mean →

Size, to scale

051015202530354045 ft

Pleasure-Way Ascent TS · 19.4 ft long · 9′8″ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
