2027 Grand Design Reflection 337RLS

Grand Design · Fifth Wheel · 2027

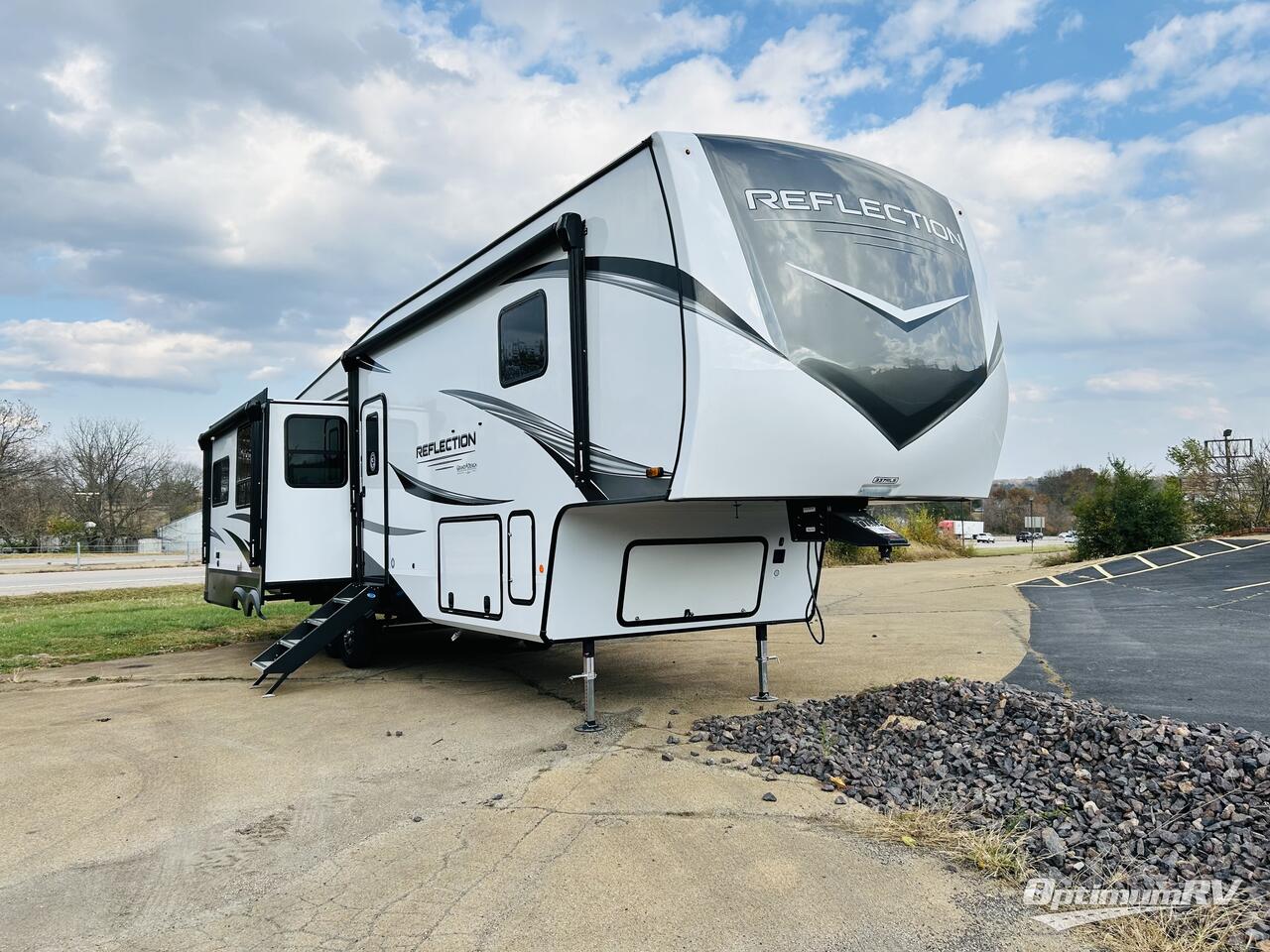

Grand Design Reflection 337RLS

Cold-weather campers get a lot in the standard Reflection spec: Arctic 4-Season Protection with heated holding tanks and an enclosed underbelly, plus a fireplace alongside the furnace. Reflection sits below Influence and Solitude in Grand Design's full-size fifth wheels, and this three-slide plan sleeps four, with roof solar and an inverter prep already fitted.

Approx. price
~$98,788
maker starting price
Length
35.6 ft
Sleeps
4
Grand Design’s page for this model →

Floorplan

Grand Design Reflection 337RLS floorplan drawing

Grand Design’s drawing of the 337RLS layout. Tap it for the full-size file.

Specifications

Size

Exterior length
35.6 ft
Exterior height
13.2 ft
Sleeps
4
Slide-outs
3

Tanks and power

Factory solar
370 W

Standard equipment named by the maker

  • ABS brakes
  • MORryde CRE3000 suspension
  • Goodyear Endurance tires
  • 370W roof solar, 60A controller, inverter prep (standard)
  • Compass Connect monitoring app
  • Arctic 4-Season Protection (heated holding tanks, enclosed underbelly)
  • 35,000+ BTU furnace + fireplace

What owners report

Drawn from 14 owners' accounts of the Grand Design Reflection, mostly 2018–2026 units. It covers the whole Grand Design Reflection line, not only this floorplan. Nobody here has camped in it; this is what people who bought one say.

Two very different ownership stories come out of the 2021–2023 builds. Owners living full time in a 2021 and in a 28-foot fifth wheel for six years, and a 2020 297RSTS owner with more than 30,000 towing miles, report few or no issues beyond a toilet seal or a backflow valve. Against that, a 2023 fifth wheel owner logged 34 documented problems in 20 months, from detached fascia to a fridge that came off its mount, and a 2022 312BHTS owner calls theirs a money pit, with Grand Design customer service reps changing so often they had to start over each time.

One 2021 28BH owner found broken welds, including at the pin box, and spongy floors; two friends with the same problem had $9,000 and $24,000 repairs covered by warranty.

The four-season label drew complaints at both ends of the thermometer: a 2022 owner in Massachusetts paid about $12,000 after the tankless heater and black tank froze, and a full-timer in Texas found the air conditioning could not keep up in summer.

What owners like

  • +Several full-timers report years of living in one with only minor, owner-fixable issues, from a stationary 2021 to a 28-foot fifth wheel lived in for six years.
  • +Owners pulling Reflection fifth wheels with three-quarter-ton trucks say they tow well: a gas F-250 on a 9,500 lb Reflection 150, mountains included, and a Ram 2500 that pulls one like a champ.
  • +Owners who have had other brands rank the Reflection ahead of them: one over the Jayco and Coachmen Clipper they owned, another over their Keystone Bullet.

Common complaints

  • −Some newer owners describe dozens of defects and slow or shifting factory support, including 34 documented issues in 20 months on a 2023.
  • −Axle trouble shows up on newer units: one Reflection 150 owner had a bent axle wearing tires, and a 2022 owner was quoted $2,000 for two new axles.
  • −Fridges are a weak point, from a 2021 unit that failed after a year to an inverter that never powered the residential fridge on a 2022.
  • −Temperature extremes are hard going: a Texas full-timer says the air conditioning could not keep up in summer and it was tough to stay warm in winter, and a 2022 four-season unit froze in Massachusetts.

Questions owners ask

Can a half-ton truck tow a Reflection 150 fifth wheel?+

Grand Design markets it that way, but an owner with a 9,500 lb Reflection 150 says even the salesman strongly advised against it. That owner tows with a gas F-250 and says it does well in the mountains.

Weights

2027 maker figures

Dry weight (UVW)
11,475 lb
GVWR
13,995 lb
Pin weight, dry
2,475 lb
Cargo capacity (CCC)
not published

2,520 lb between brochure dry weight and GVWR. Water (8.3 lb a gallon), food, gear, propane and dealer-added options all come out of it.

What these weights mean →

What can tow it? A tow vehicle rated to pull at least 13,995 lb. That is the Grand Design Reflection 337RLS’s GVWR, the most it may weigh loaded, and the number to hold against a tow rating instead of the dry weight. Its pin weight (2,475 lb dry, more once loaded) sits on a hitch in the pickup’s bed and comes out of the truck’s payload, along with passengers and cargo.

Size, to scale

051015202530354045 ft
  • Grand Design Reflection 337RLS · 35.6 ft long · 13′2″ tall
Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.

Cold-weather build: Maker lists 'Arctic 4-Season Protection' as a Reflection feature and cites third-party cold testing 'from ZERO to 100+ degrees'

Compared with

2027 Grand Design Reflection 150 Series 295RLLine photo

Fifth Wheel · Grand Design

Grand Design Reflection 150 Series 295RL

Length
33.8 ft
Sleeps
4
GVWR
10,995 lb
  • 2 slides
  • 4-season
  • 180 W solar

~$85,242

2027 Grand Design Influence 3503GK

Fifth Wheel · Grand Design

Grand Design Influence 3503GK

Length
38.2 ft
Sleeps
4
GVWR
18,000 lb
  • 3 slides
  • 330 W solar
  • 81 gal fresh

~$136,056

2027 Grand Design Solitude 310GK

Fifth Wheel · Grand Design

Grand Design Solitude 310GK

Length
34.3 ft
Sleeps
4
GVWR
19,000 lb
  • 3 slides
  • 330 W solar
  • 83 gal fresh

~$158,788

13 owner accounts →

2027 Grand Design Solitude 380FLLine photo

Fifth Wheel · Grand Design

Grand Design Solitude 380FL

Length
41.3 ft
Sleeps
6
GVWR
19,000 lb
  • 5 slides
  • 330 W solar
  • 83 gal fresh

~$180,926

13 owner accounts →

Where these figures come from

Taken from these pages. Options and later model-year changes can move any of them.
