Coachmen · Class B · 2027

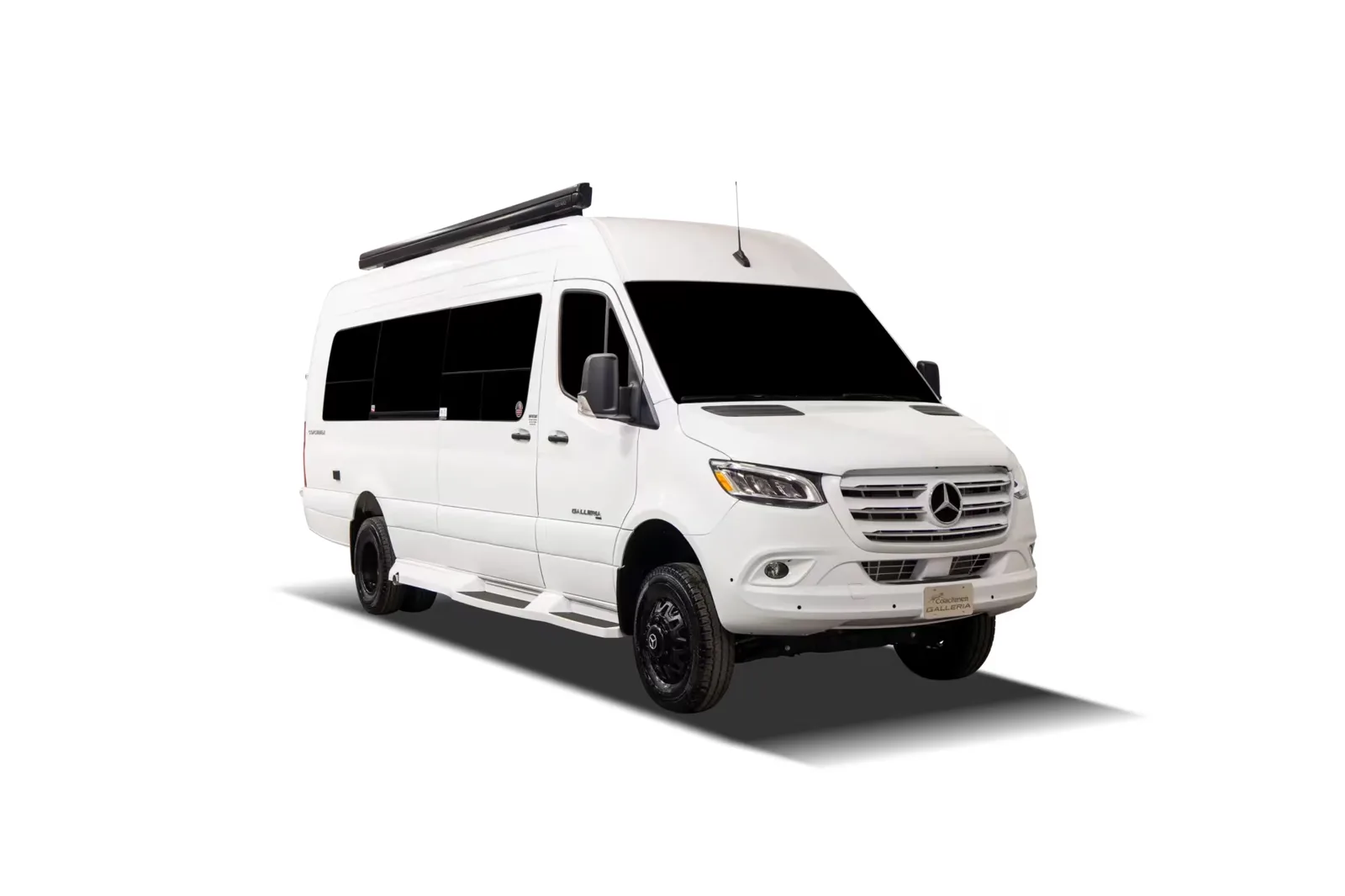

Coachmen Galleria 24Q

Coachmen's Sprinter van sits above the Transit-based Beyond and the ProMaster-based Nova, with a diesel engine and all-wheel drive on every floorplan. The 24Q puts a queen bed across the rear of the extended 3500 body. An Onan LP generator and 330 W of solar are standard, while lithium is an upgrade.

Approx. price: —
Length: 24.25 ft
Sleeps: 2

Specifications

Size

Exterior length: 24.25 ft
Exterior height: 9.5 ft
Sleeps: 2
Slide-outs: 0

Tanks and power

Fresh water: 26 gal
Gray water: 24 gal
Black water: 12 gal
Factory solar: 330 W
House battery: Lithionics 310Ah lithium listed as replacing standard batteries (standard type not captured)
Generator: Onan QG 2500 LP

Chassis

Chassis: Mercedes-Benz Sprinter 3500 extended, AWD
Engine: 2.0L turbo I4 diesel
Fuel: Diesel

Standard equipment named by the maker

Rear queen bed layout on Sprinter 3500 extended
AWD chassis on all floorplans with Sumo Springs
330W solar (3 x 110W)
Onan QG 2500 LP generator
5,000 lb tow hitch with 7-pin
Heated front swivel seats and heated mirrors

Weights

2027 maker figures

GVWR: 11,030 lb
Dry weight (UVW): not published
Occupant + cargo (OCCC): not published
Towing capacity: 4,220 lb

What these weights mean →

Size, to scale

051015202530354045 ft

Coachmen Galleria 24Q · 24.25 ft long · 9′6″ tall

Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
