2027 Brinkley Model Z 3100

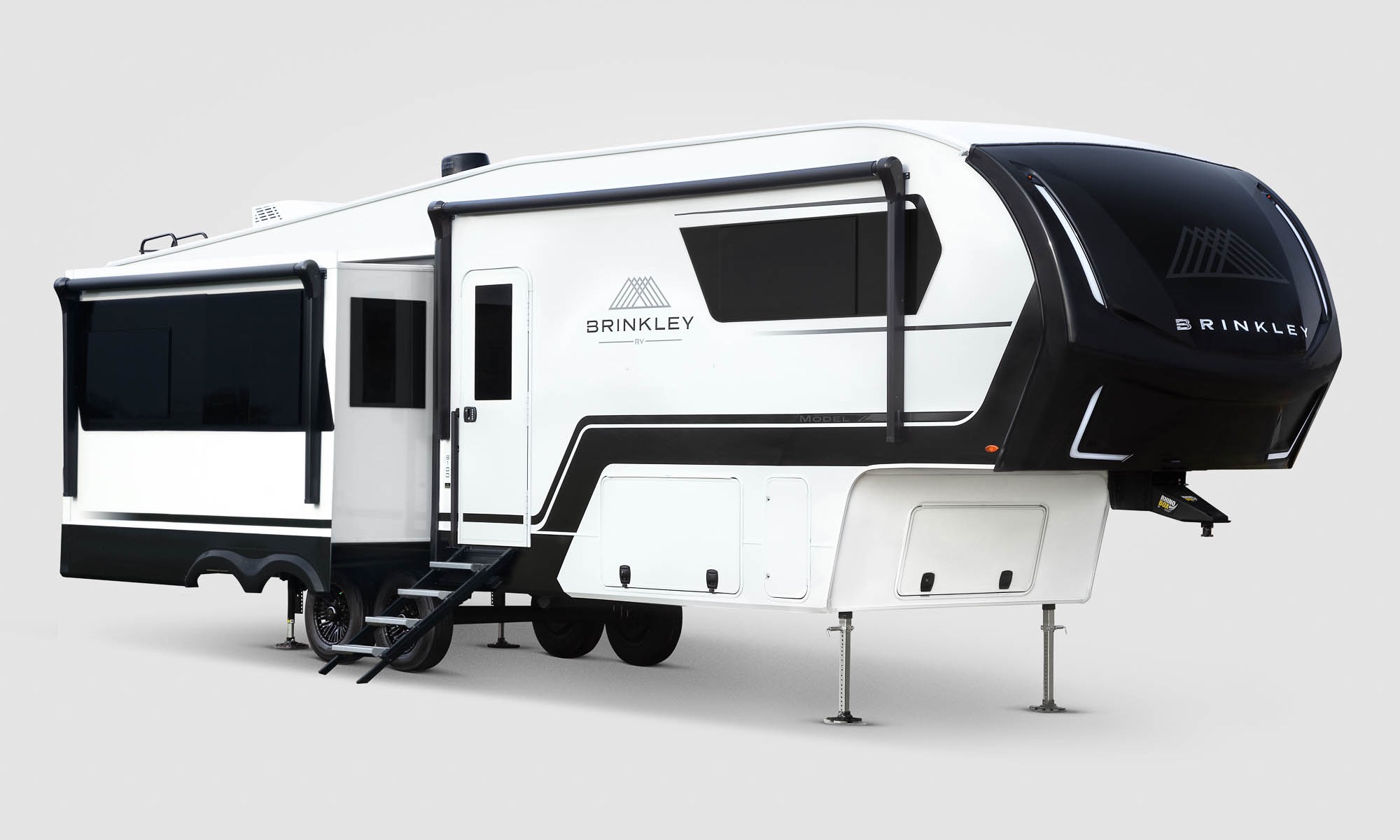

Line photo: Brinkley publishes one photo for the Model Z line, so it may show another floorplan. Windows and slides can differ from the 3100 described here.

Brinkley · Fifth Wheel · 2027

Brinkley Model Z 3100

Flush-floor stepless slides in the galley and living room set the Model Z 3100 apart, with a king-bed slide making three. Theater seating, a tri-fold sofa and an electric fireplace fill the living area, and the bedroom has a walk-in closet with washer/dryer hookups. Heated, enclosed tanks and a pass-through basement are standard, at around $126,000.

Approx. price
~$125,509
maker MSRP
Length
34.92 ft
Sleeps
4
Brinkley’s page for this model →

Floorplan

Brinkley Model Z 3100 floorplan drawing

Brinkley’s drawing of the 3100 layout. Tap it for the full-size file.

Specifications

Size

Exterior length
34.92 ft
Exterior height
13.17 ft
Sleeps
4
Slide-outs
3

Tanks and power

Factory solar
370 W
House battery
Dual Group 27 battery box (batteries not specified); 50A MPPT controller, lithium/inverter ready

Standard equipment named by the maker

  • Dual flush-floor stepless galley and living-room slide-outs
  • Tandem 7k axles on 17.5in H-rated 16-ply tires
  • 370W solar panel (740W ready) with 50A MPPT controller
  • 79.5in bedroom and bathroom ceiling height
  • Heated and enclosed underbelly with heated holding tanks
  • Theater seating, 72in tri-fold sofa and electric fireplace
  • Walk-in bedroom closet with washer/dryer hookups
  • Pass-through basement with 130+ cu ft cargo storage

Weights

2027 maker figures

Dry weight (UVW)
12,489 lb
GVWR
15,495 lb
Pin weight, dry
2,357 lb
Cargo capacity (CCC)
not published

3,006 lb between brochure dry weight and GVWR. Water (8.3 lb a gallon), food, gear, propane and dealer-added options all come out of it.

What these weights mean →

What can tow it? A tow vehicle rated to pull at least 15,495 lb. That is the Brinkley Model Z 3100’s GVWR, the most it may weigh loaded, and the number to hold against a tow rating instead of the dry weight. Its pin weight (2,357 lb dry, more once loaded) sits on a hitch in the pickup’s bed and comes out of the truck’s payload, along with passengers and cargo.

Size, to scale

051015202530354045 ft
  • Brinkley Model Z 3100 · 34.92 ft long · 13′2″ tall
Drawn to one scale from each camper's listed length and, where the maker publishes it, its exterior height. Outlines are typical for the camper type, not traced from this model. The figure is a 6 ft person. The dashed blue line is 25 ft, the length about 93% of national park campgrounds accept.
